My nearly-new, new-to-me $16 Lee Pro 1000
Early observations mixed in with a fair amount of commentary.
If you feel the need to bash I'm sure there are hundreds, if not thousands, of other threads you would be entirely more productive in.
Coming from a single stage, and later turret press setups, a full progressive is a bit daunting, especially if it's made by LEE. Having read enough background on the Pro 1000 I knew that I'd need to blend the lines between setup/tuning and what seems to be the ever present frustration of WHY DOESN'T IT WORK OUT OF THE BOX! Having to acclimate to three simultaneous stages (vs. one on a single or turret) AND figure out what needed to be 'fixed' induced a fair amount excessive blood pressure.
Timing and die setup were pretty straight forward, as was the case feeder. The priming assembly, oh bubblegum... Using recommended primers I'd get 10rnds in and it wouldn't feed, or it would turn the primer sideways. A fix-it thread suggested slightly chamfering the edges of the primer pin - 10 minutes later the feeding problem was solved 100%.
I'm stubborn, am reasonably good with my hands, and have tools - I anticipated the 'doesn't quite work out of the box' challenge, and was victorious. That said, I can completely recommend that those new to hand loading NOT buy this press. There's simply too much happening for the uneducated to monitor, too many potential fixes for the uninclined - too much of a possibility that the new reloader will get discouraged and abandone this great hobby.
Get a single stage, or better yet, get a turret. Trust me.
On to the pictures.

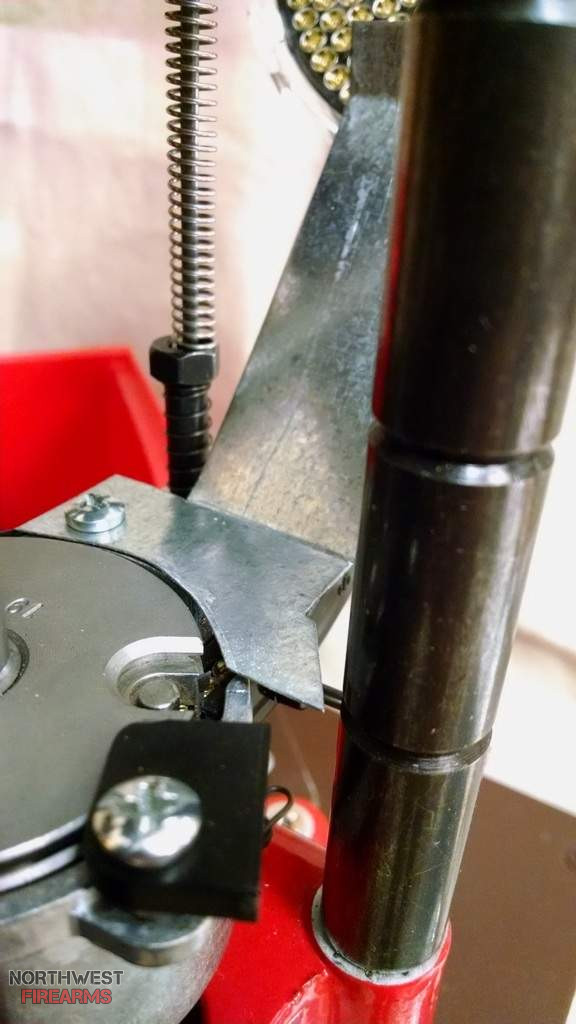

1st up: Primer explosion shield. Lee recommends against all but a couple of brands, and while I tuned the press with CCI, I intend to use S&B. Whether or not the S&B will feed/press reliably I have yet to find out, but I felt some type of shield prudent.
Just galvanized sheet metal cut to fit - I do hope that I don't get to find out it's effectiveness.
Next up is the bullet feed actuation rod. It operates off friction - the little nub you see cutoff is the friction part that wears.
Sure, the part is $2 from Lee - but I, hopefully, rebuilt it for a lifetime's use.

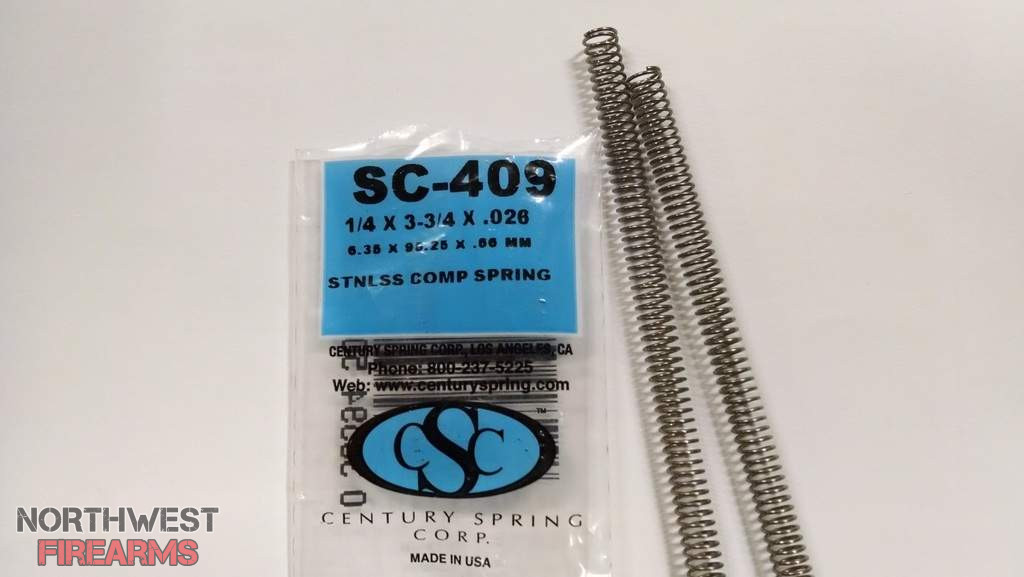

Parts necessary (Parkrose, for all you Vantuckians )
I purchased a grab bag of Pro 1000 parts off eBay for $10 shipped. Included was a case feed cylinder - Swapped out the bolt for a shorter one and installed it as multi-tube bullet feeder (Lee has a factory version of this).
Closing:
1: Make it work out of the box, LEE.
2: Lube what needs to be lubed with graphite.
3: The bullet feed works perfectly with Lee's 356-120 bullet.
4: The case collator / case feeder work very well.
5: Bullet feeder makes removing the turret to dump the powder cumbersome - The Pro Auto Disk's removable hopper remedies that.
6: Don't see any point of the Auto Disk pull back chain - use the standard Auto Disk lever & spring (couple bucks from Lee).
This press has hours into it - partially due to my initiation into the progressive world, the remaining due to bubblegum that needed fixing.
I now own a very smooth running Pro 1000
Early observations mixed in with a fair amount of commentary.
If you feel the need to bash I'm sure there are hundreds, if not thousands, of other threads you would be entirely more productive in.
Coming from a single stage, and later turret press setups, a full progressive is a bit daunting, especially if it's made by LEE. Having read enough background on the Pro 1000 I knew that I'd need to blend the lines between setup/tuning and what seems to be the ever present frustration of WHY DOESN'T IT WORK OUT OF THE BOX! Having to acclimate to three simultaneous stages (vs. one on a single or turret) AND figure out what needed to be 'fixed' induced a fair amount excessive blood pressure.
Timing and die setup were pretty straight forward, as was the case feeder. The priming assembly, oh bubblegum... Using recommended primers I'd get 10rnds in and it wouldn't feed, or it would turn the primer sideways. A fix-it thread suggested slightly chamfering the edges of the primer pin - 10 minutes later the feeding problem was solved 100%.
I'm stubborn, am reasonably good with my hands, and have tools - I anticipated the 'doesn't quite work out of the box' challenge, and was victorious. That said, I can completely recommend that those new to hand loading NOT buy this press. There's simply too much happening for the uneducated to monitor, too many potential fixes for the uninclined - too much of a possibility that the new reloader will get discouraged and abandone this great hobby.
Get a single stage, or better yet, get a turret. Trust me.
On to the pictures.
1st up: Primer explosion shield. Lee recommends against all but a couple of brands, and while I tuned the press with CCI, I intend to use S&B. Whether or not the S&B will feed/press reliably I have yet to find out, but I felt some type of shield prudent.
Just galvanized sheet metal cut to fit - I do hope that I don't get to find out it's effectiveness.
Next up is the bullet feed actuation rod. It operates off friction - the little nub you see cutoff is the friction part that wears.
Sure, the part is $2 from Lee - but I, hopefully, rebuilt it for a lifetime's use.
Parts necessary (Parkrose, for all you Vantuckians )
I purchased a grab bag of Pro 1000 parts off eBay for $10 shipped. Included was a case feed cylinder - Swapped out the bolt for a shorter one and installed it as multi-tube bullet feeder (Lee has a factory version of this).
Closing:
1: Make it work out of the box, LEE.
2: Lube what needs to be lubed with graphite.
3: The bullet feed works perfectly with Lee's 356-120 bullet.
4: The case collator / case feeder work very well.
5: Bullet feeder makes removing the turret to dump the powder cumbersome - The Pro Auto Disk's removable hopper remedies that.
6: Don't see any point of the Auto Disk pull back chain - use the standard Auto Disk lever & spring (couple bucks from Lee).
This press has hours into it - partially due to my initiation into the progressive world, the remaining due to bubblegum that needed fixing.
I now own a very smooth running Pro 1000
