Skeleton type stock for AR-15 carbine ...

[CountryGent]

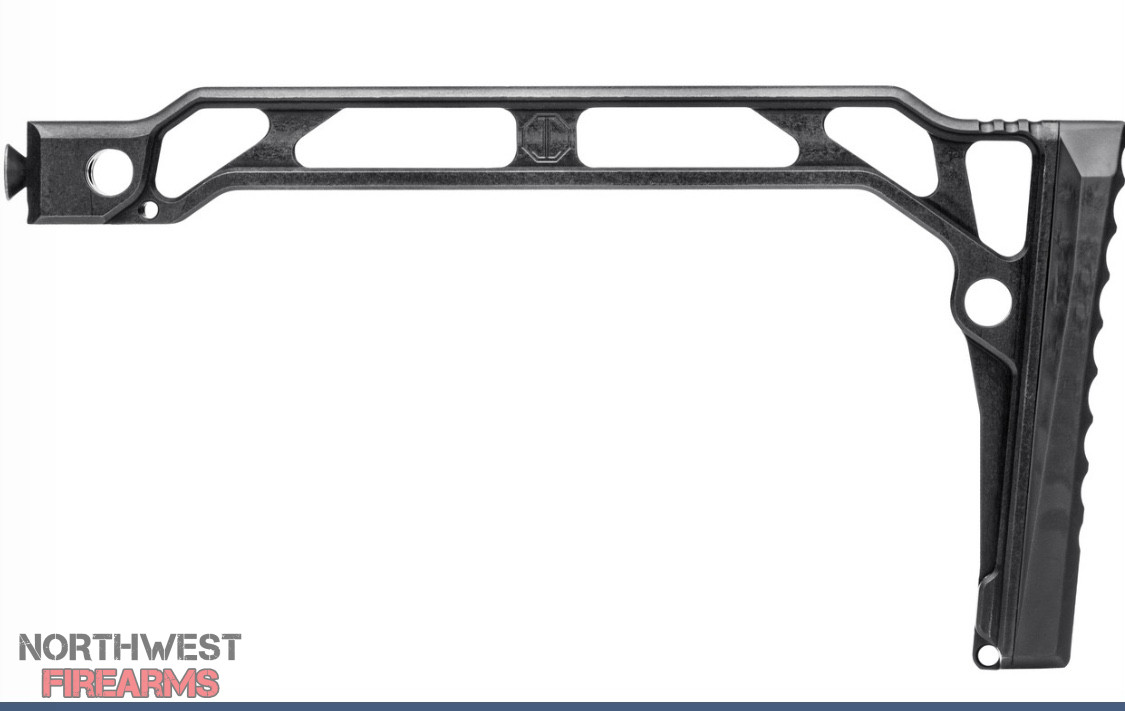

So, I am looking for AR-15 carbine stock that is sort of like this:



It will attach to a carbine type tube:

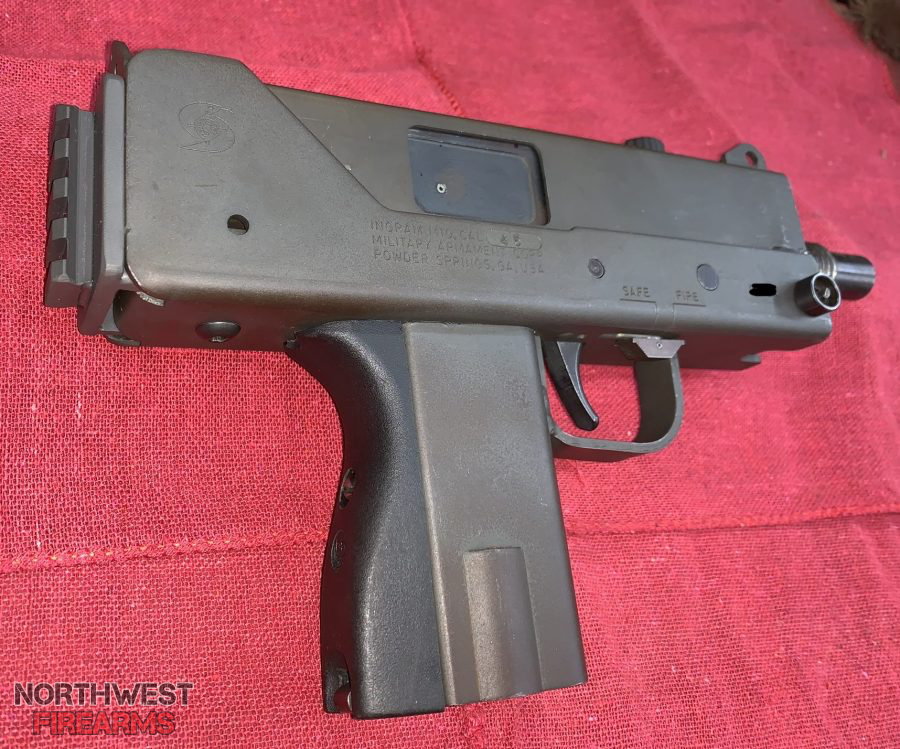

It does not need a spring or buffer as it is attaching to a submachine-gun that has an AR-15 adapter.

Suggestions? Thanks!

Read More



[MTpockets]

Picatinny Rail Adapter

Picatinny Rail Stock Adapter – Full Auto M10 – Practical Solutions

macmachineguns.com

Double Star and/or Other Cool Options

ACE Pic Rail AKFX Stock (SS) 7.5"

#html-body [data-pb-style=OVNULSH]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}The more things change, the more they stay the sam

doublestarusa.com

AR Tube
MDT SCS or others in the link.

https://mdttac.com/mdt-scs-lite-skeleton-carbine-stock-lite/



[VinnieBoomBah]

Are you planning on using the carbine tube because the adaptor adds to the LOP? If so this one might be the ticket.

(ARFX-E) Gen 1 Skeleton Stock Entry Length With Buffer Tube and FDE Foam

(ARFX-E) Gen 1 Skeleton Stock Entry Length With Buffer Tube and FDE Foam

doublestarusa.com



[ilikegunspdx]

So, I am looking for AR-15 carbine stock that is sort of like this:

View attachment 1817279

It will attach to a carbine type tube:

View attachment 1817280

View attachment 1817281

It does not need a spring or buffer as it is attaching to a submachine-gun that has an AR-15 adapter.

Suggestions? Thanks!

I would adapt it to picatinny/1913 rail. The sky is the limit for the type of stock you can use probably 100+ options.



These kind you can put wood inserts or cheek risers in which looks really cool Imo.



[CountryGent]

Thanks fellows, much appreciated. My understanding is the adapter I have only works with carbine type tubes, but I'm far from expert on AR parts. The stock from Double Star looks like exactly the ticket.



[ilikegunspdx]

Thanks fellows, much appreciated. My understanding is the adapter I have only works with carbine type tubes, but I'm far from expert on AR parts. The stock from Double Star looks like exactly the ticket.

You can convert from ar to 1913 easily with an adapter but if that ends up being 2 adapters that may make length of pull too long. There are adapters for everything seems like. A few random examples.




Standard ar15 reciever to 1913 with jmac knockoff stock on a brn-180

Same stock with a picatinny to picatinny optics riser to increase length of pull 1.5"?ish.

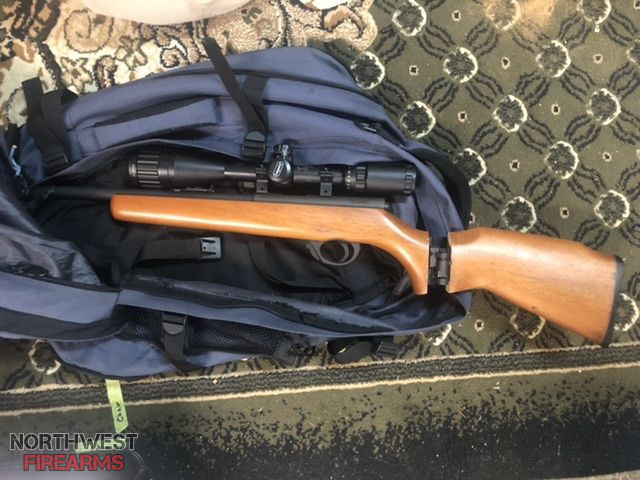

You can also get custom wood ones made (this one is not mine)


• ilikegunspdx
• Jul 21, 2022

Note to those who may be unfamiliar with NFA: All NFA rules apply and stocked pistols or vertical foregrips on pistols require an NFA SBR stamp



[Sporting Systems]

Thanks fellows, much appreciated. My understanding is the adapter I have only works with carbine type tubes, but I'm far from expert on AR parts. The stock from Double Star looks like exactly the ticket.

I have the Doublestar skeletoon stock on one of my own builds in 458 Socom. I wrapped the bars with paracord, which gave it a nice look, a little better grip and the utility of having a nice chunk of cord right there on the rifle.



[monkeybutler]

I can't think of anything that fits the bill exactly.

ACE does make a short version of that stock that is more 'carbiney' but it is too short unless you are an action hero in bulky body armor. or a midget.



[VinnieBoomBah]

I can't think of anything that fits the bill exactly.

ACE does make a short version of that stock that is more 'carbiney' but it is too short unless you are an action hero in bulky body armor. or a midget.

Or you could get lucky like I did and find one of these and end up with an "in between" length

DPMS Stock Extender 1 AR-15 Aluminum Matte

An aluminum alloy extender inserts between the stock and the receiver adding 1" length to the stock. Can be used on A1 or A2 rifles. Anodized....

www.midwayusa.com



[monkeybutler]

Or you could get lucky like I did and find one of these and end up with an "in between" length

DPMS Stock Extender 1 AR-15 Aluminum Matte

An aluminum alloy extender inserts between the stock and the receiver adding 1" length to the stock. Can be used on A1 or A2 rifles. Anodized....

www.midwayusa.com

Yeah but still not quite the look/structure of the ace stock on a carbine buffer tube. The shorty ace looks like it goes on a short but round/smooth buffer tube, without the (whatever the downward portruding stuff on the underside of a carbine tube is called).

Don't mean to be a negative nellie here but not sure there is a perfect solution.



[VinnieBoomBah]

Yeah but still not quite the look/structure of the ace stock on a carbine buffer tube. The shorty ace looks like it goes on a short but round/smooth buffer tube, without the (whatever the downward portruding stuff on the underside of a carbine tube is called).

Don't mean to be a negative nellie here but not sure there is a perfect solution.

Guess it depends on if the length or the features of the carbine stock are what's important



[monkeybutler]

Guess it depends on if the length or the features of the carbine stock are what's important

Yep.

I might try the complete ace stock kit, with the buffer tube and whatnot.

Or maybe a Magpul CTR which vaguely resembles the triangle shape of the ace stock And has the same utilitarian vibe.



[VinnieBoomBah]

My understanding is the adapter I have only works with carbine type tubes

The reason they specify the carbine tube is because of the way the AR buffer tubes are retained on an AR. For the rifle the threads are just long enough to screw in and capture the buffer retaining pin and there is a flange to keep it from going in too far. the stock is then screwed to the back of the tube and there is a nub on the front bottom of the stock to prevent everything from rotating, so you get basically a 3 point lock up. You can see the nub on the front of the ACE stock as well.
The carbine tubs can't be attached to the rear of the tube so the threads are longer and you use a castle nut to lock the tube to the receiver, and you would use that same way of locking up to attach it to the adaptor.

So you can use a rifle stock with any of the adaptors, the thread depth into the receiver is the same on both the the rifle and carbine, but the rifle tube wouldn't have the castle nut to lock it down. You could use Rockset to keep it in place or a screw run through the bottom of adaptor and tube would work. If the back of the adaptor is open you could even get a nut in there on the screw

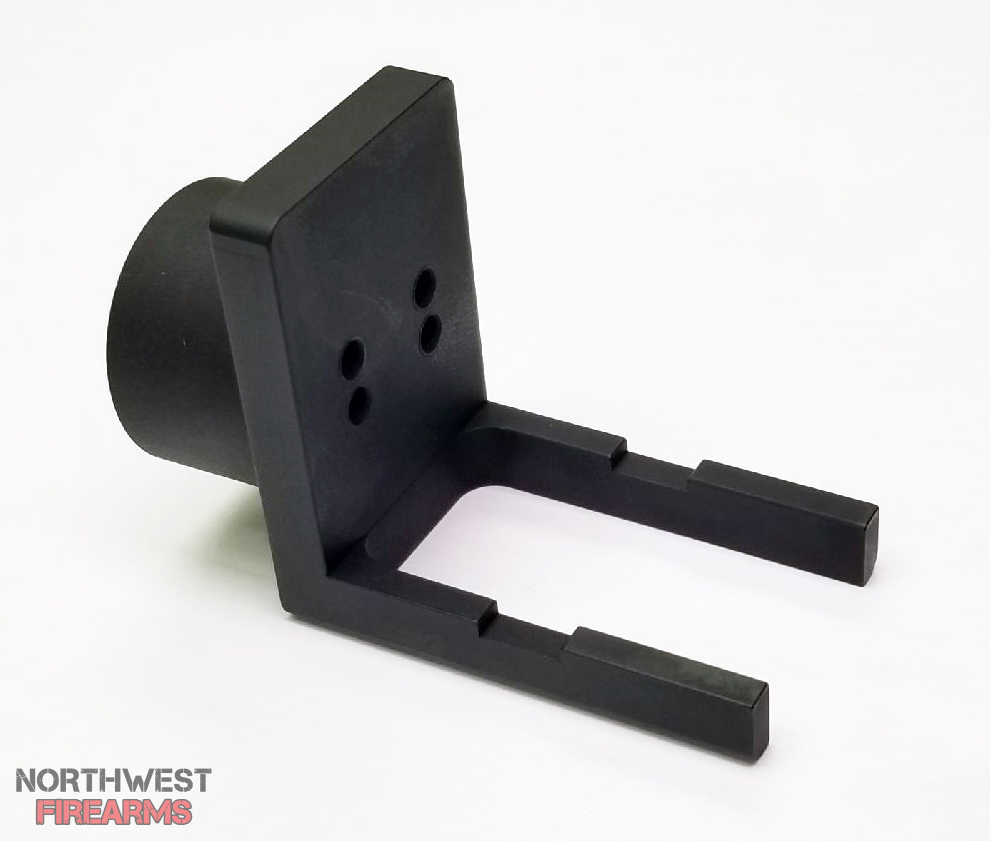

Photo for reference
