Is scope ring lapping necessary? Opinions?

Discussion in 'Maintenance & Gunsmithing' started by Aero Denezol, Sep 13, 2017.

  1. Aero Denezol

    Aero Denezol
    Salem
    Well-Known Member

    Messages:
    488
    Likes Received:
    475
    Is scope ring lapping recommended for any/all scopes, or is this primarily reserved for high-end optics and 1000 yard rifles? Is it worth the trouble for a 100 yard plinker?

    Is it possible to lap anodized aluminum rings without ruining them?

    Your thoughts are greatly appreciated,

    Certaindeaf likes this.
  2. KKG

    KKG
    Western Washington
    Bronze Vendor Bronze Vendor

    Messages:
    1,046
    Likes Received:
    1,461
    Personally, I've never seen a need to lap Rings. But then I have chosen to purchase ONLY High Quality Rings, Bases and Scopes. I have found that if you use cheap it can be Very expensive in the long run.:)

    orygun, thorborg and Certaindeaf like this.
  3. Certaindeaf

    Certaindeaf
    SE Portland
    Well-Known Member

    Messages:
    11,184
    Likes Received:
    17,155
    I'm a heathen and have never lapped my rings. lol
    Don't think I ever will either.

  4. Velzey

    Velzey
    Estacada Gunsmith
    Büchsenmacher Bronze Vendor

    Messages:
    2,925
    Likes Received:
    5,768

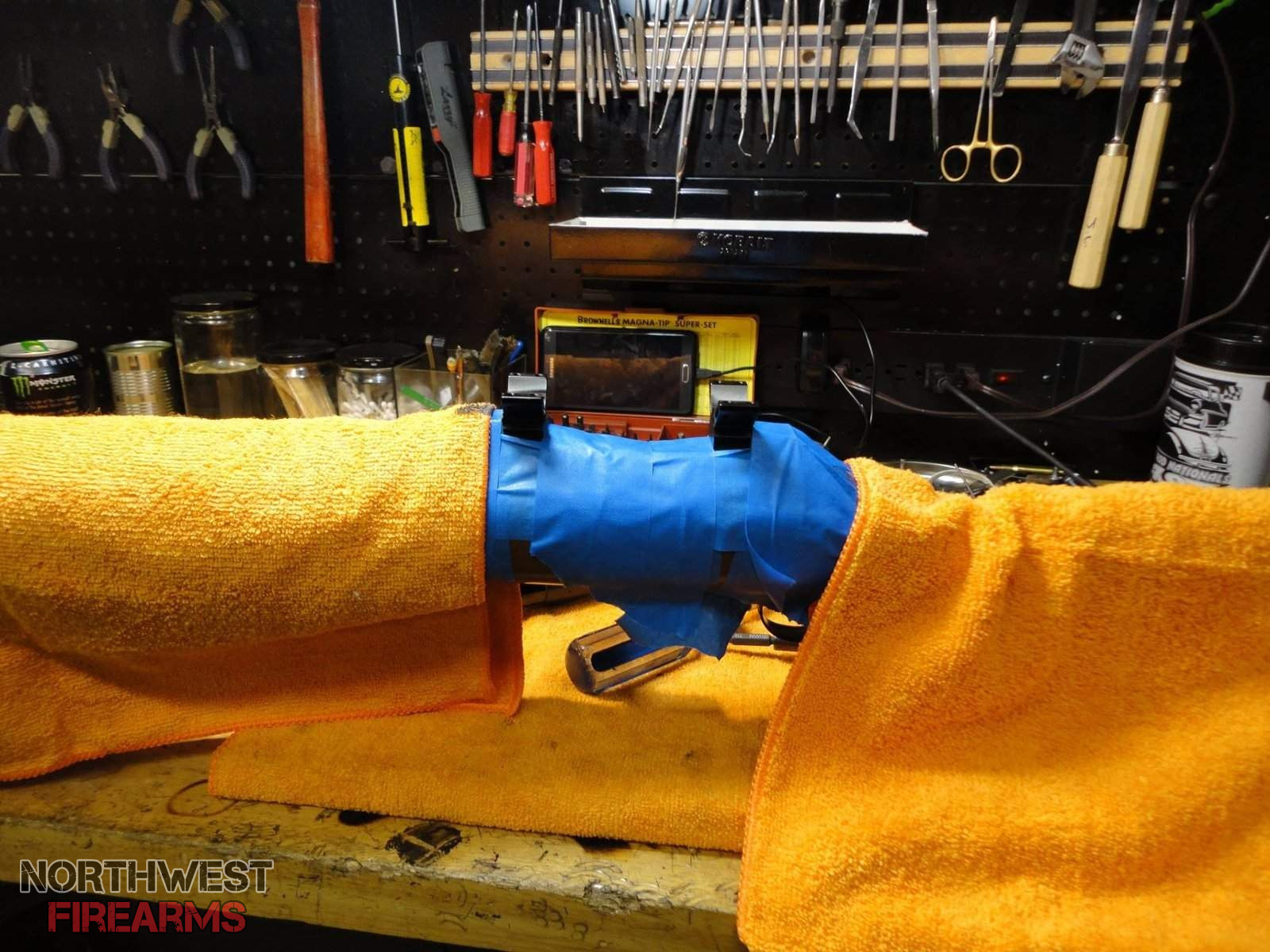

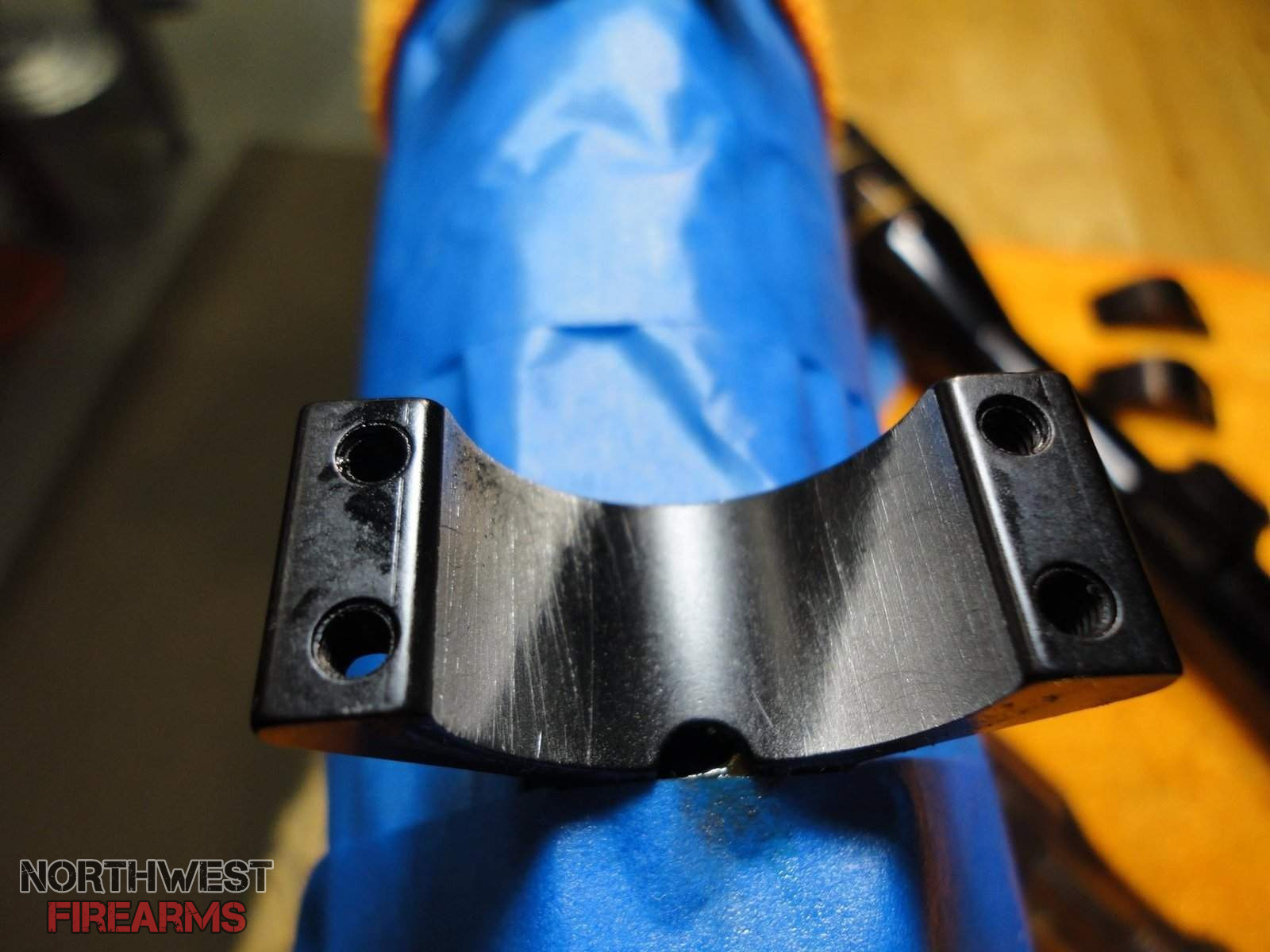

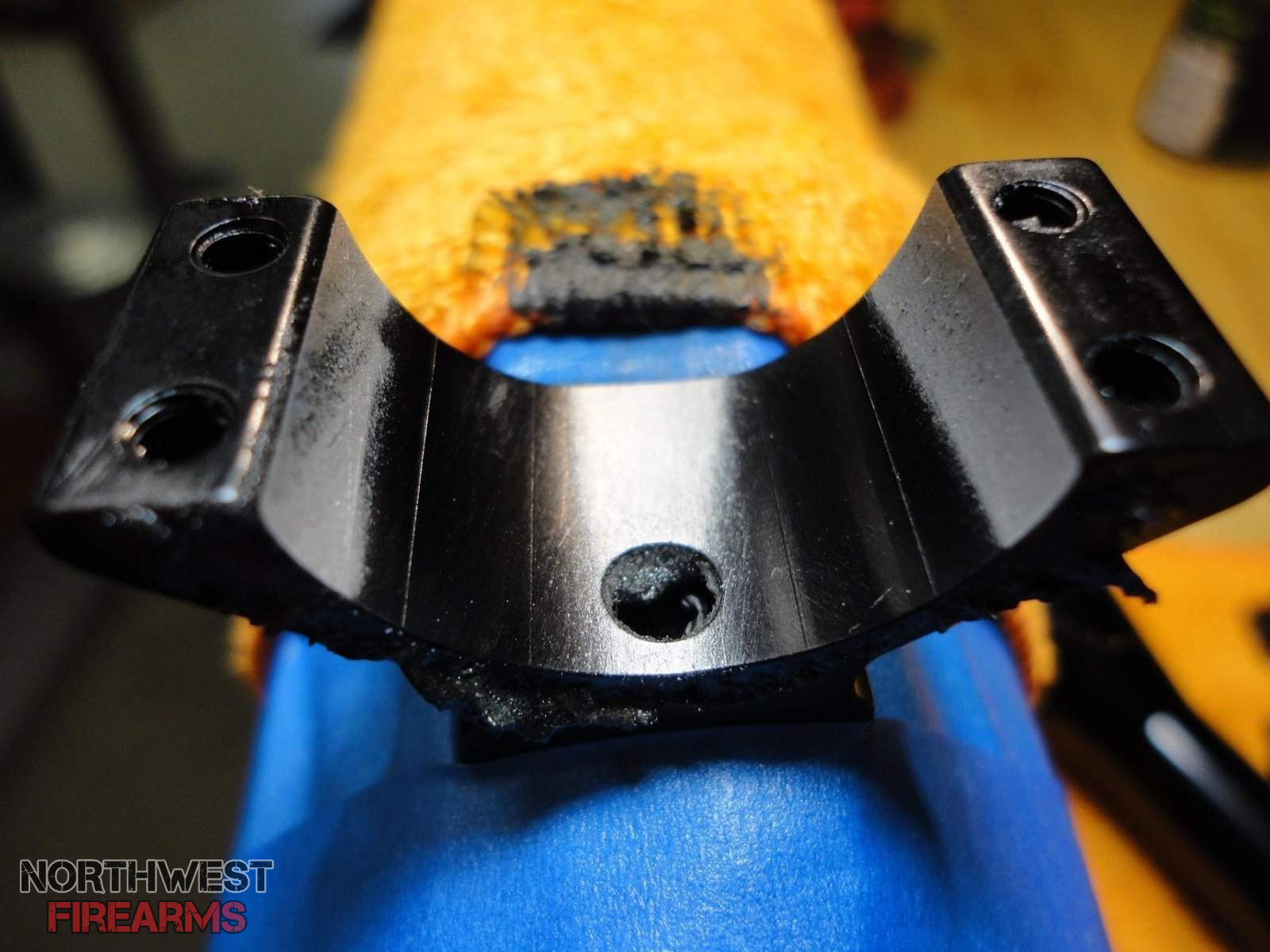

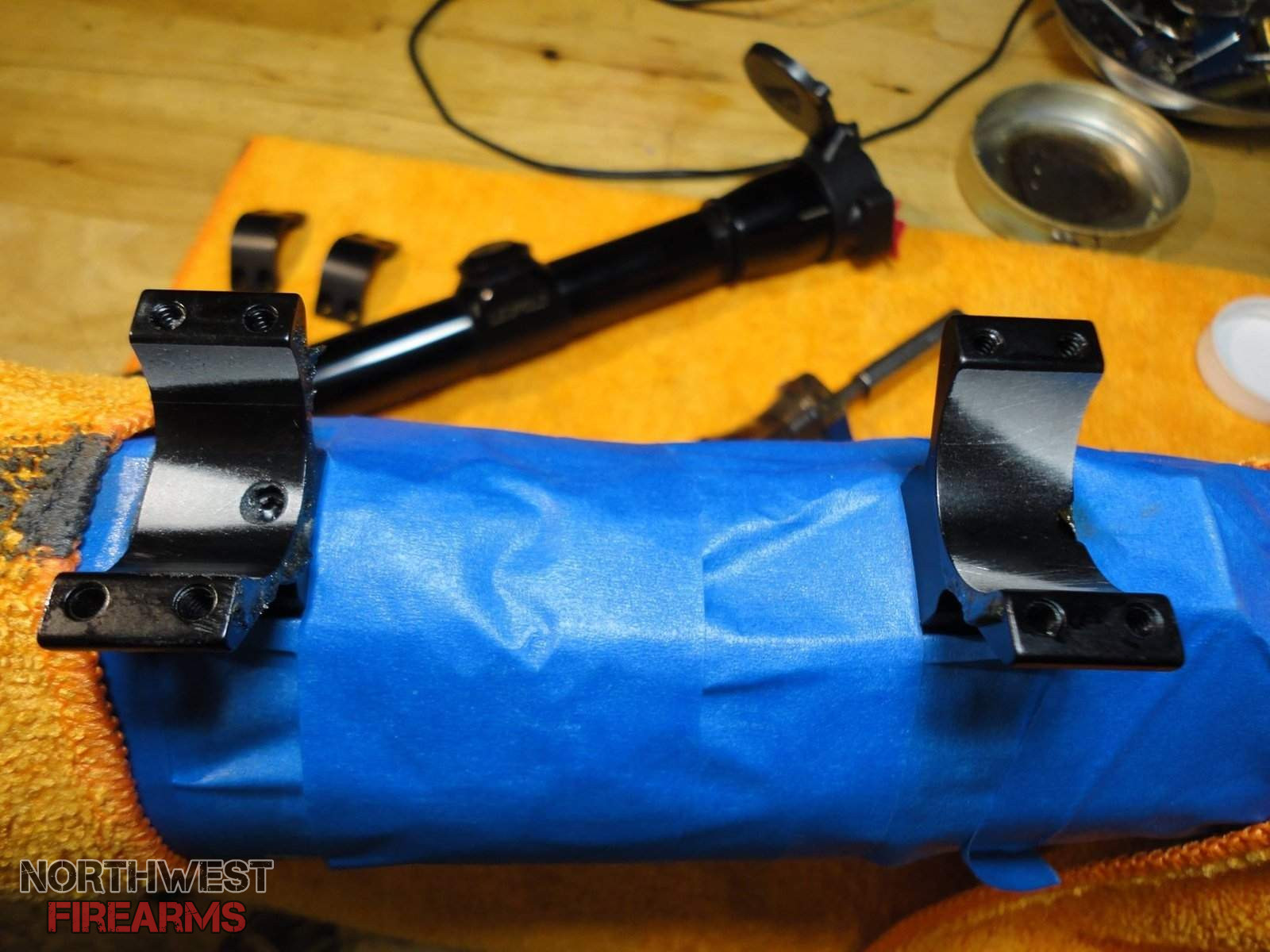

    Always even on cheaper ring sets. A friend of mine just shared these today.
    And yes you can lap anodized rings. You would need to remove allot (.010+) to get thru the ano.

    IMG_0269.JPG IMG_0270.JPG IMG_0271.JPG IMG_0272.JPG

    Last edited: Sep 13, 2017
    HB of CJ and Certaindeaf like this.
  5. Certaindeaf

    Certaindeaf
    SE Portland
    Well-Known Member

    Messages:
    11,184
    Likes Received:
    17,155
    Well, I'm officially converted.

  6. F2CMaDMaXX

    F2CMaDMaXX
    West of Portland from England
    Bullet goes where now? Staff Member Bronze Supporter 2015 Volunteer 2016 Volunteer

    Messages:
    2,432
    Likes Received:
    2,188
    Oh, so i shouldn't try and shove the Leupold in the Tikka rings then?

    edslhead and Alexx1401 like this.
  7. thorborg

    thorborg
    portland oregon
    Gold Supporter Gold Supporter 2015 Volunteer 2016 Volunteer

    Messages:
    1,245
    Likes Received:
    2,344
    Though I have other scopes that came with used rifles, I have only purchased Leupold scopes with Leupold rings and followed Mfg. guidelines; without lapping without issues: dating from Early 70's to this summer; .270 vari-x-3, 2.5 x8 gold band, BFR 45-70 2X ER, .243 M8 4X , 6.5X55 VX3i 4.5x14.
    According to some, I may be either extremely lucky or still pending failure.
    While it may be nice to have your engine balanced and blueprinted, you may not always realize improvement or payback, over a well made factory unit.

  8. albin25

    albin25
    Lewiston Idaho
    Well-Known Member

    Messages:
    1,758
    Likes Received:
    7,681
    So, even if one buys some extra-super-dee-duper-special-magical, high-end, high-cost rings from the "right" manufacturer, they should still need to carefully and painstakingly file a zillionth off for them to function properly.?
    Or, is this just something a too serious gun guy uses for an excuse when his wife shoots better than him in front of his buddies...


    Last edited: Sep 14, 2017
    Gaucho Gringo and Aero Denezol like this.
  9. F2CMaDMaXX

    F2CMaDMaXX
    West of Portland from England
    Bullet goes where now? Staff Member Bronze Supporter 2015 Volunteer 2016 Volunteer

    Messages:
    2,432
    Likes Received:
    2,188
    Sometimes I really frown at the choice of theoretical examples some people use. :rolleyes:

  10. orygun

    orygun
    West Linn
    Bronze Supporter Bronze Supporter

    Messages:
    4,732
    Likes Received:
    4,485
    I'm not gunsmith, nor do I play one on TV, but I've never needed to lap rings. If I did I didn't know it!
    Most all of the scopes we use have 1" tubes. I have a nice piece of 1" DOM tubing that I use to make sure the pair of rings are square, then I carefully bolt the scope in place. This in no way will correct rings that need to be trued, but I make sure they are pointing the same direction to ease stress on the scope tube.

    Lilhigbee likes this.
  11. osprey

    osprey
    Wetstern WA
    Well-Known Member

    Messages:
    311
    Likes Received:
    539
    The two reasons for checking alignment and lapping in rings is to correct slight misalignment and provide full contact surface area to hold scope more securely. I have seen some pretty bad cases of scope ring misalignment that couldn't be lapped out. Buying quality scopes and rings definitely up the odds of not having problems but even a good set of rings on a quality rifle can be slightly misaligned and put the scope in tension. A good scope usually will handle this but a cheaper one can be compromised. At the very least, a good scope in rings out of alignment that have not been lapped to provide full contact stands the chance of slipping in the rings and shifting zero. I check alignment every time and lap accordingly and highly recommend serious shooters and hunters do the same. Here is the alignment/lapping kit I use, it does 1" and 30mm tubes.

    Jet.com - Prices Drop As You Shop

    HB of CJ likes this.
  12. jsparks747

    jsparks747
    Portland, Or
    Well-Known Member

    Messages:
    1,200
    Likes Received:
    1,935
  13. Certaindeaf

    Certaindeaf
    SE Portland
    Well-Known Member

    Messages:
    11,184
    Likes Received:
    17,155
    Aero Denezol likes this.
  14. parallax

    parallax
    eugene, or-gun
    Well-Known Member

    Messages:
    869
    Likes Received:
    670
    hand lap-----yes.
    misaligned rings can cause you scope tube to bend. changing the optical center, as well as possibly damaging your scope tube or internal parts. plus you want full contact on your scope to ring surfaces. also measure ring gap upper half to lower half,with feeler gauges and make them all equal, and torque ring mounting hardware.
    I guess i am WAY to picky... HaaaaHaaaHaaaaa...:)

  15. Crohnos01

    Crohnos01
    SW Washington
    Silver Supporter Silver Supporter

    Messages:
    838
    Likes Received:
    1,917
    F2CMaDMaXX likes this.
  16. Certaindeaf

    Certaindeaf
    SE Portland
    Well-Known Member

    Messages:
    11,184
    Likes Received:
    17,155
    That blue wrapping paper ain't hidin' nothin'! lol

  17. Velzey

    Velzey
    Estacada Gunsmith
    Büchsenmacher Bronze Vendor

    Messages:
    2,925
    Likes Received:
    5,768

    NWCustomFirearms likes this.
  18. HB of CJ

    HB of CJ
    42N, 123W Kinda
    Well-Known Member

    Messages:
    1,075
    Likes Received:
    1,768
    Sometimes it is difficult to get the scope exactly correct down the pipe right to left and up and down at your desired range zero with the reticle adjustments exactly centered. Ring lapping is one way of doing it correctly. Takes times but not hard. Doable.

    Kinda like sorta but completely different maybe than using the Plastic Gage main and rod bearing clearance crush gaging setting up the bearing clearance on an engine build. If not correctly done the bearings don't mike exactly. Results is bad. Same? No.
