A friend cleaning out a garage on a piece of property he bought, found this. No idea what this is/was. (besides being a rifle stock B4 you go there..) Looks like a homeowner modified something from WWII.

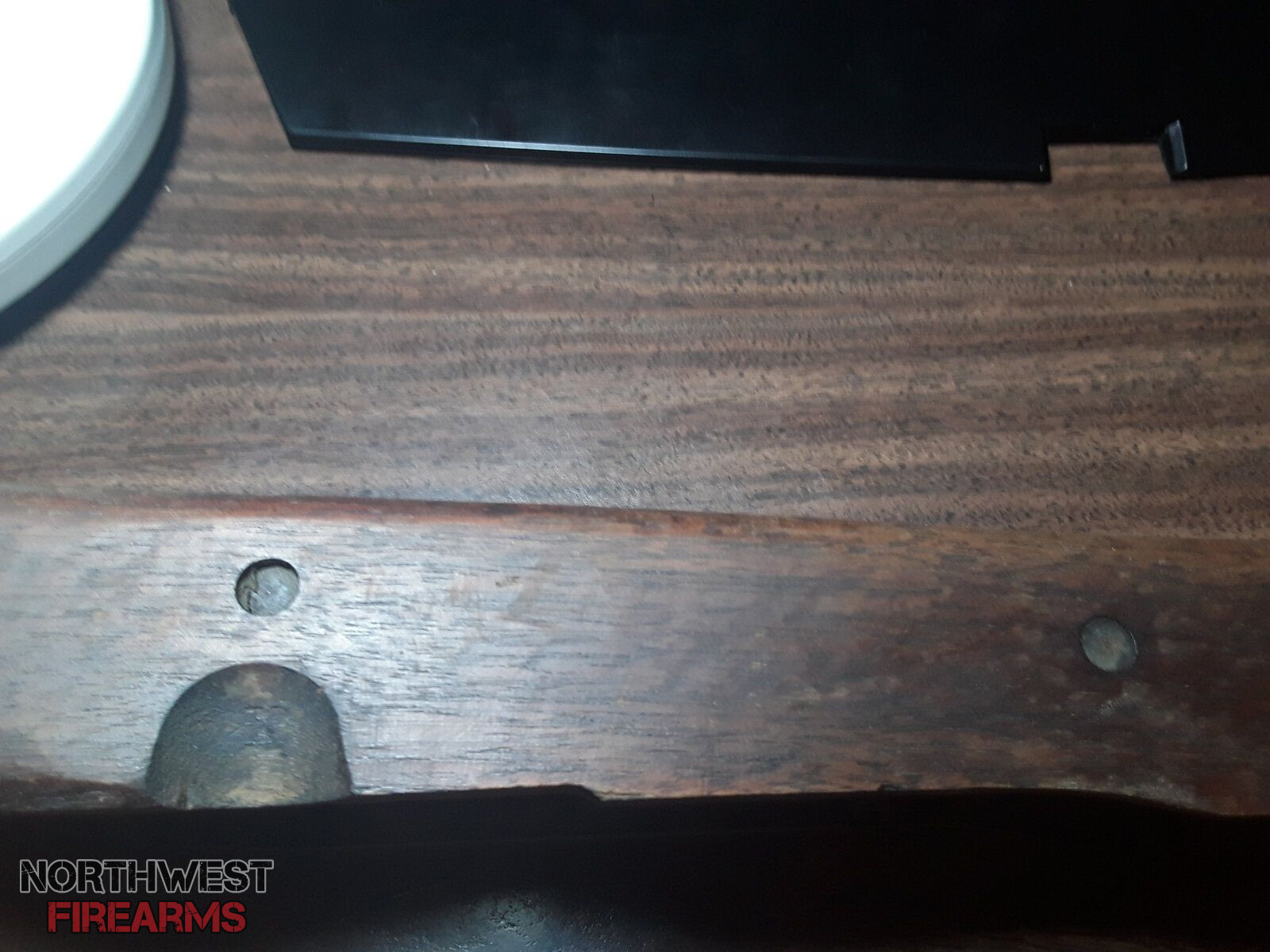

Can anyone please help identify it? I say modified because the front swivel screw isn't properly centered and to me, it looks like the owner did some homemade beveling on the fore end. Plus, the front swivel screw would hit the barrel if it was there. The back screw on the front swivel has been butchered down.
The 'ONLY' marking I can find is a large K on the left side notch where 'maybe' a bolt handle came down? The white marks on the butt are from tape, just ignore them.
Overall length is right at 28"
Center to center bottom plate holes is 7-5/8" with a steel liner tube in the rear hole
Center to center on the stocks 2 side lugs is 4-11/16"
Buttstock plate is 4-11/16" tall, 1-3/4" @ the widest point, runs forward 1-1/4" at the top with 1 screw in it & has a slight roll going forward at the bottom. The buttstock screw is 1-1/4" from the bottom of the plate.
The opening steel circular plate on the buttstock is 15/16" The hole goes down 6-1/4" and has a shelf/shoulder at 4-1/2"
There's a 2nd hole right below the one above ^^ that goes down 5-1/4"
Can anyone please help identify it? I say modified because the front swivel screw isn't properly centered and to me, it looks like the owner did some homemade beveling on the fore end. Plus, the front swivel screw would hit the barrel if it was there. The back screw on the front swivel has been butchered down.
The 'ONLY' marking I can find is a large K on the left side notch where 'maybe' a bolt handle came down? The white marks on the butt are from tape, just ignore them.
Overall length is right at 28"
Center to center bottom plate holes is 7-5/8" with a steel liner tube in the rear hole
Center to center on the stocks 2 side lugs is 4-11/16"
Buttstock plate is 4-11/16" tall, 1-3/4" @ the widest point, runs forward 1-1/4" at the top with 1 screw in it & has a slight roll going forward at the bottom. The buttstock screw is 1-1/4" from the bottom of the plate.
The opening steel circular plate on the buttstock is 15/16" The hole goes down 6-1/4" and has a shelf/shoulder at 4-1/2"
There's a 2nd hole right below the one above ^^ that goes down 5-1/4"
