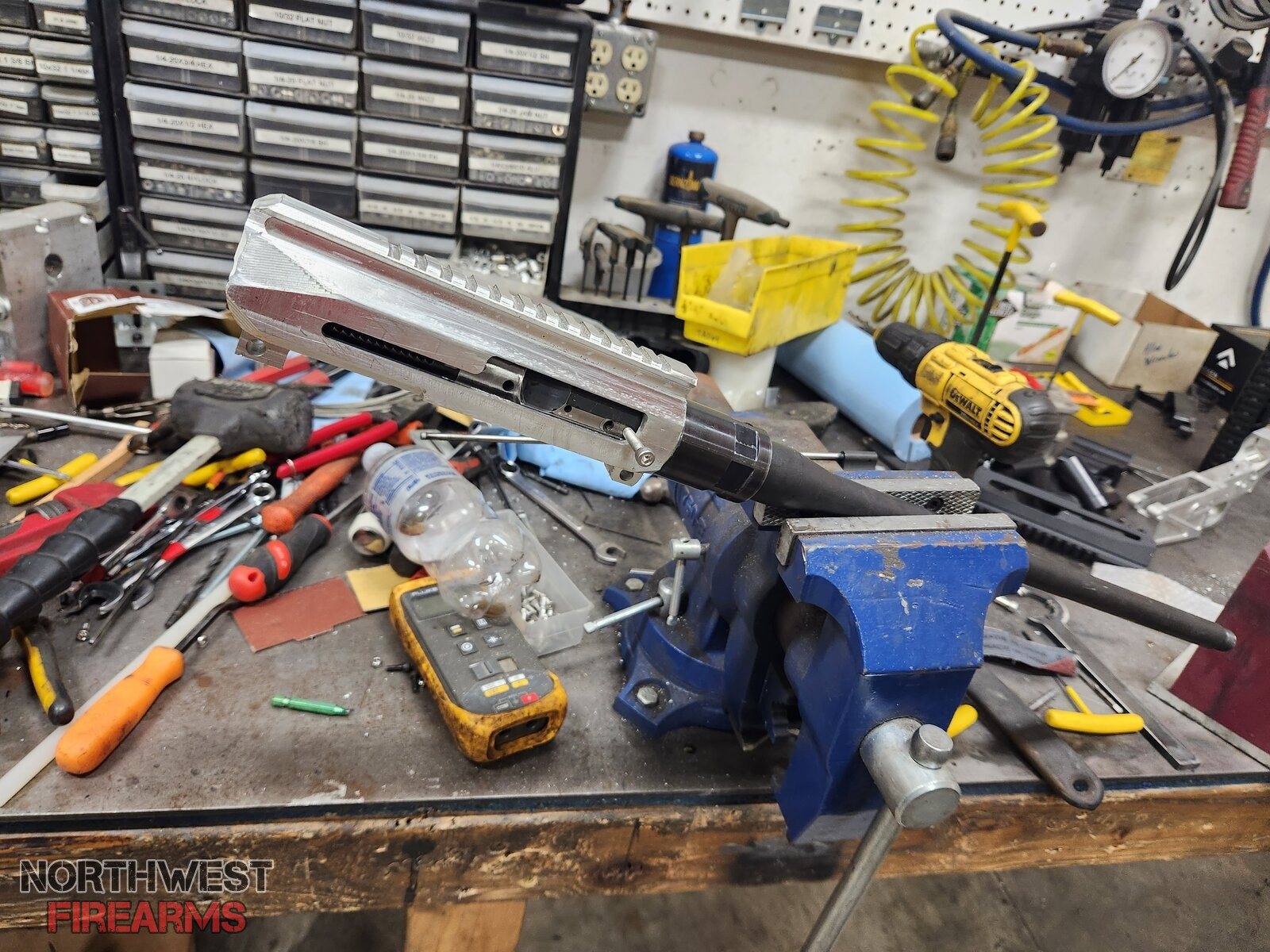

First threads I've milled with a single point thread mill, came out good. A 5in stick out 3/32 was sketchy, didn't like lots of rippers.
2 more OPs to go.

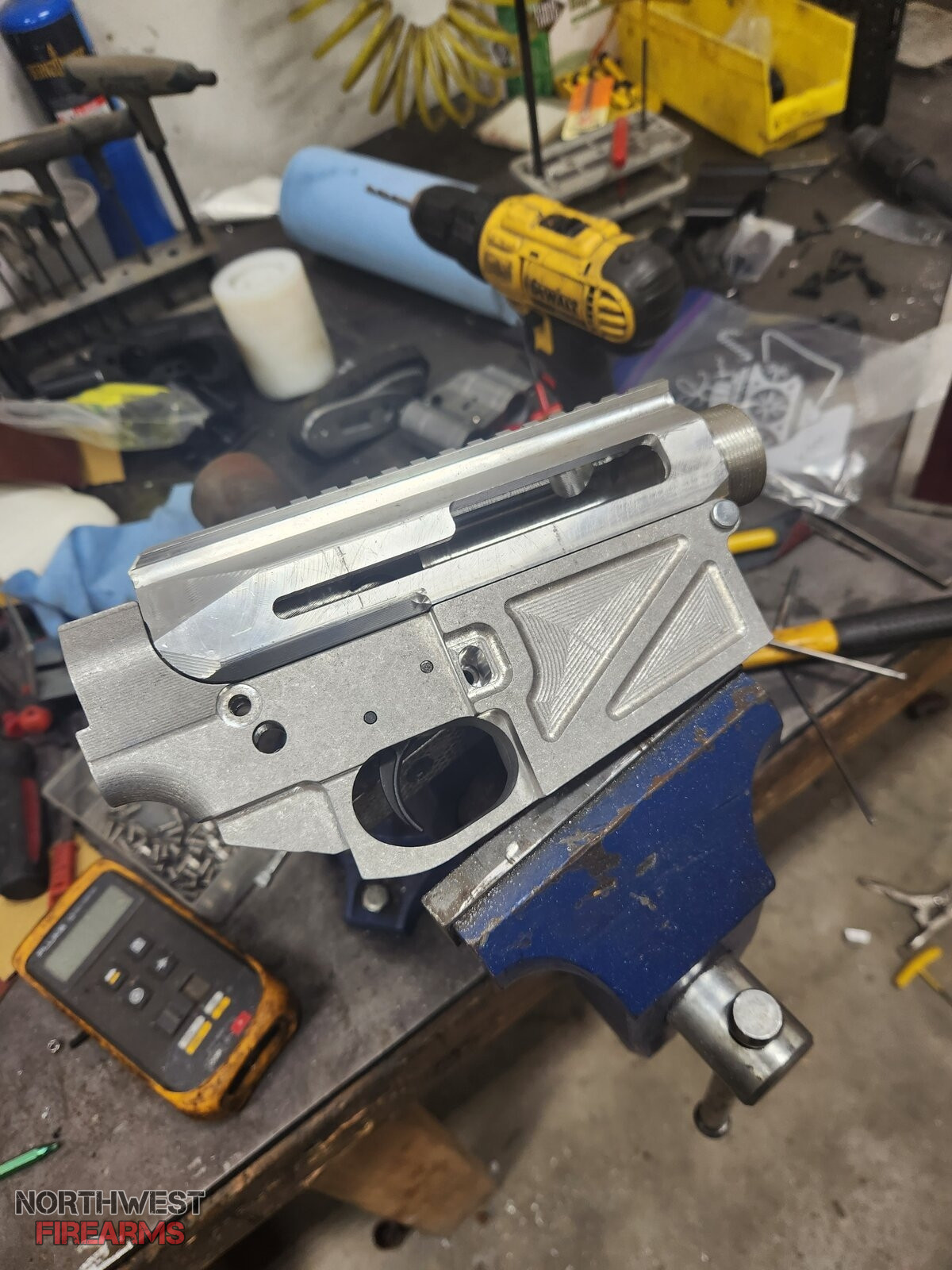

Finished one out , so far everything fits.
Having already printed a functional copy makes for zero scrap... working on a better low cost bolt solution, a custom upper is easier than a custom bcg.

20230511_121510.jpg 20230511_122857.jpg

In the latest dive down the ol rabbit hole... Now I'm convinced I can stuff a 10 BCG and barrel into a 15 sized lower. So far I haven't hit a dead end. A 10 hand guard will be needed as well.

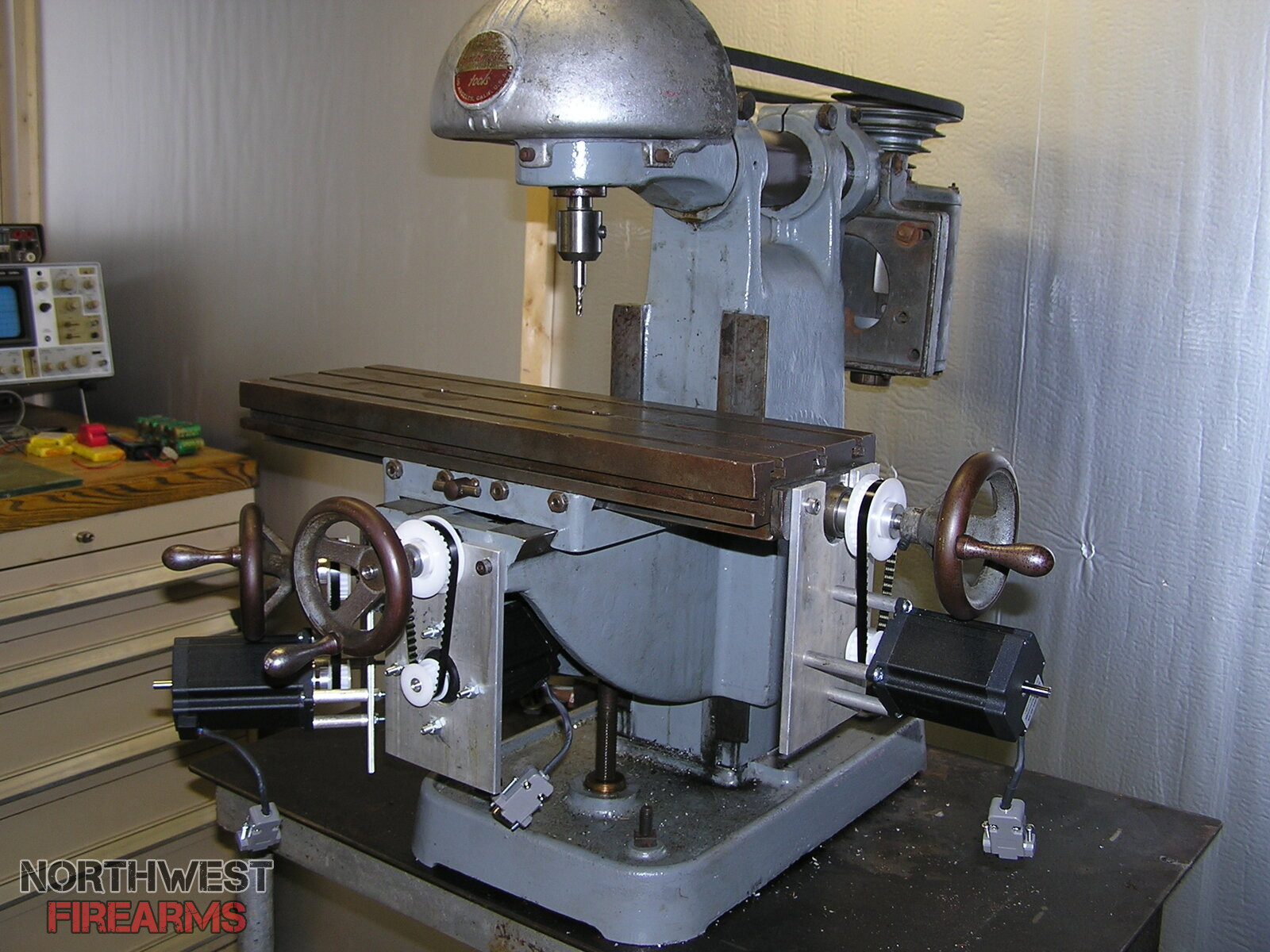

The attached photo is from Mike Freeman.
Unlike the G540 and steppers I'll be using ether cat.

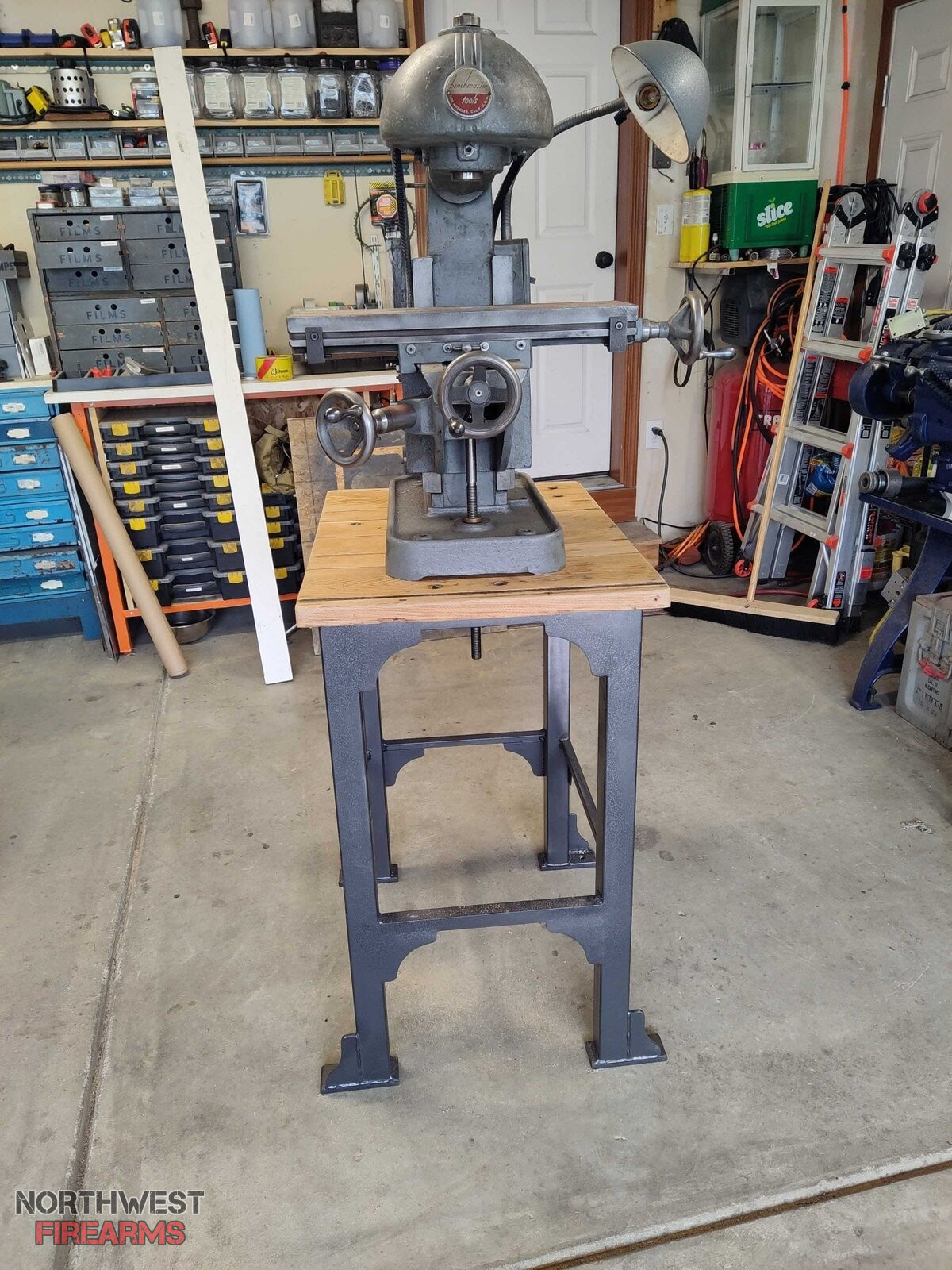

I did manage to get mine "serviced" and on a stand.

I remember the first time I single pointed those threads.
It was on way too small a lathe with a tool made from a broken tap.

CNC2.jpg on_stand.jpeg

The attached photo is from Mike Freeman.
Unlike the G540 and steppers I'll be using ether cat.
I did manage to get mine "serviced" and on a stand.

I remember the first time I single pointed those threads.
It was on way too small a lathe with a tool made from a broken tap.

View attachment 1428073 View attachment 1428077
My first (and only) mill conversion was a old Mighty CNC mustang 12x30? VMC. The controls died after 12years of running and we were cutting it up for scrap. I ran it for years on a G540 , wasn't fast rapids but it made some decent production parts.
AC servos from Clearpath were the easiest and best I've ever built with.
I grew up in a CNC shop, I got our first CAD/CAM running in 98/99. So when I started playing with mach3 over 10 years ago it was like somebody unlocked all the doors and I started building all kinds of stuff.


It's easy when you have hand me down 20x40 CNC mills lol. Doing a 2fer, should make it easier to setup and bore the barrel hole. It's a ambitious project, hoping Pioneer has no problem slipping in the upper with my parts... still not an FFL part. Either that or I read more on home hard anodizing.

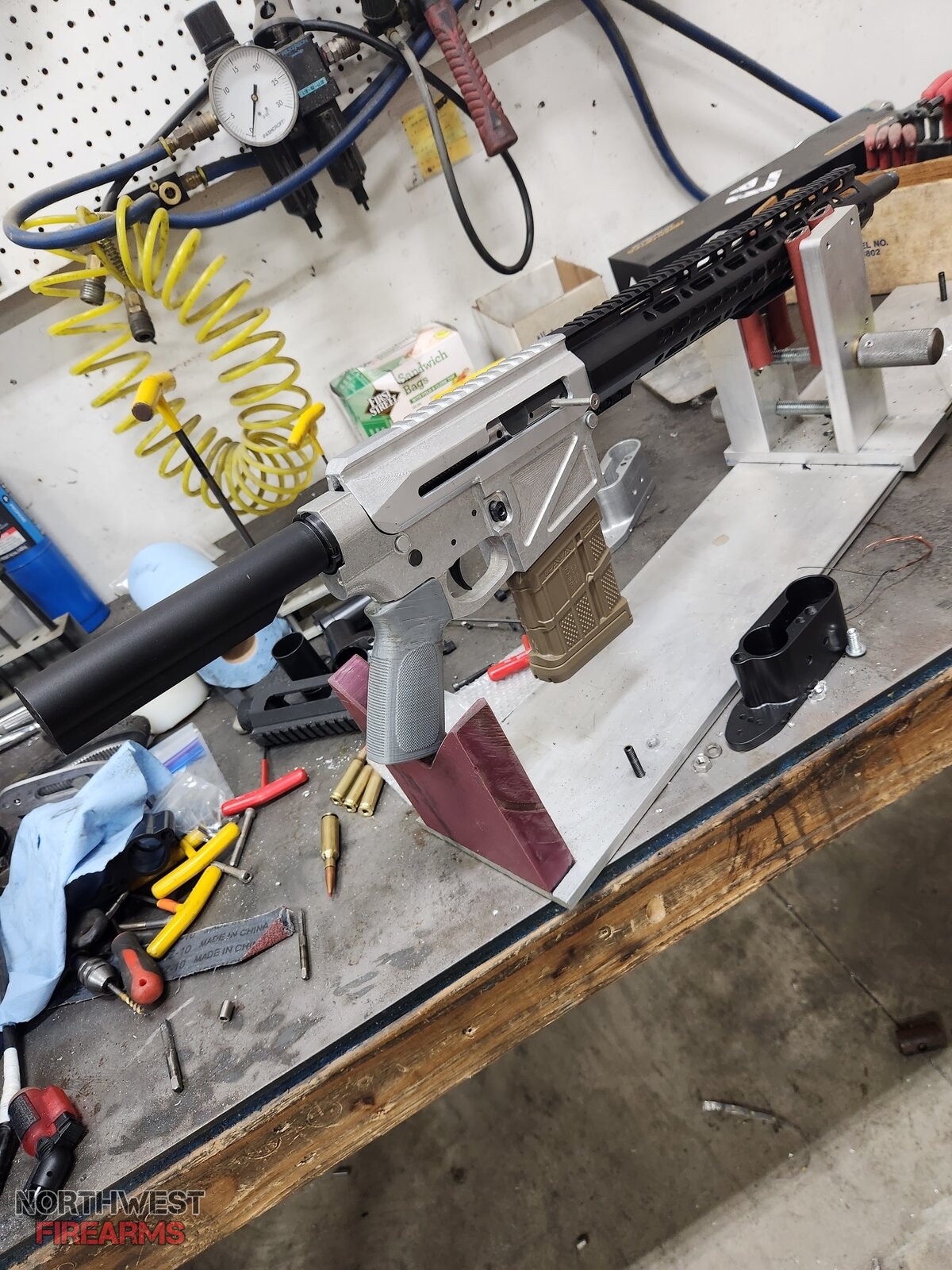

So far everything functions, feeds both sides. Still white, not sure if I'm going to slip it in a type 3 hardcoat batch (takes many weeks) or Cerakote elite and maybe microslick for the insides.

20230720_212400.jpg 20230721_103125.jpg 20230721_204108.jpg

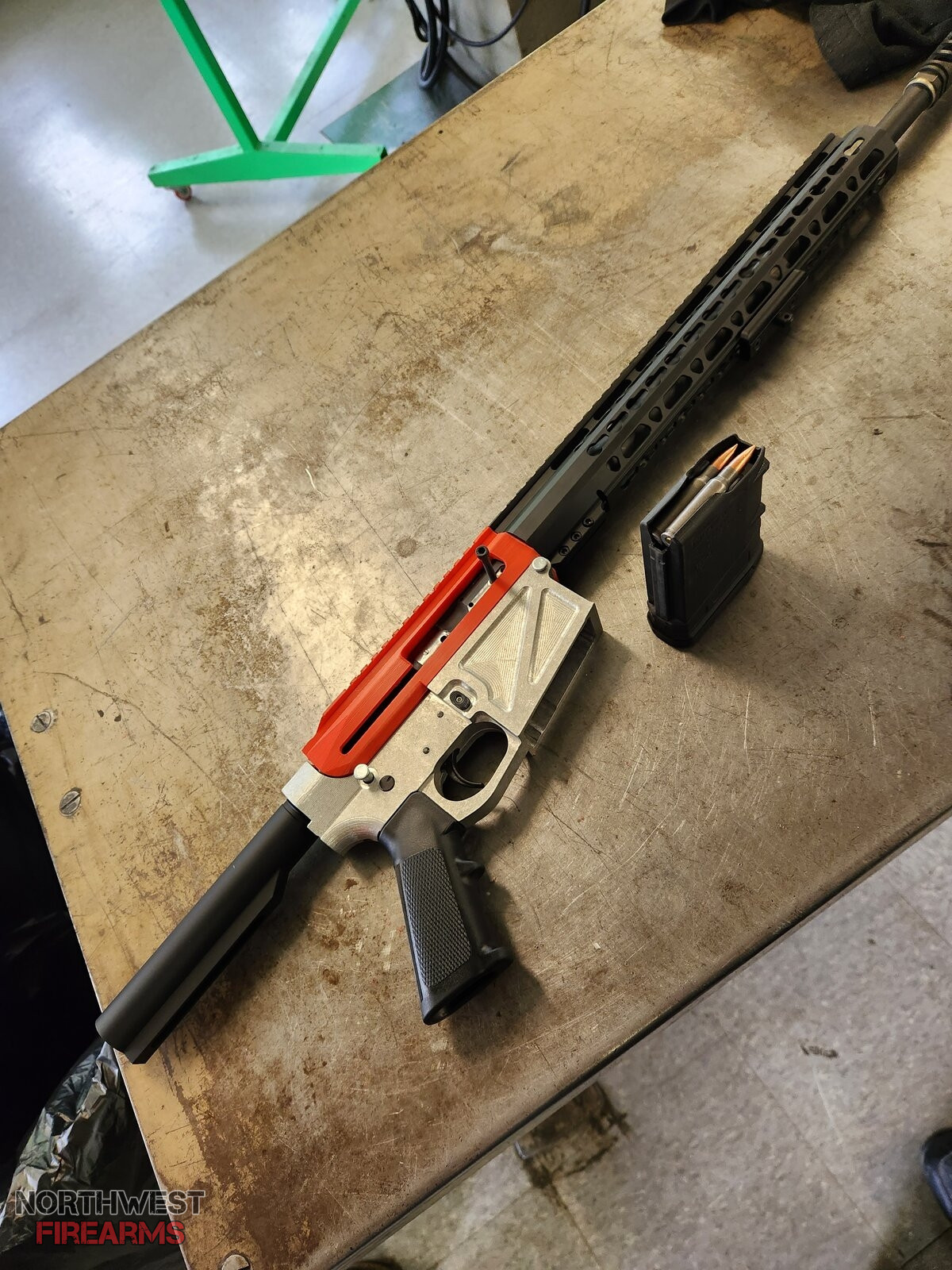

Payoff day! Titanium elite series Cerkote, Microslick on BC, some grinding on the bolt catch, reshaping of the hammer, etc etc. Welcome to custom guns.
If I had to do it all over I'd make the lower buffer tower a bit taller so I could make the upper taller for less mods.

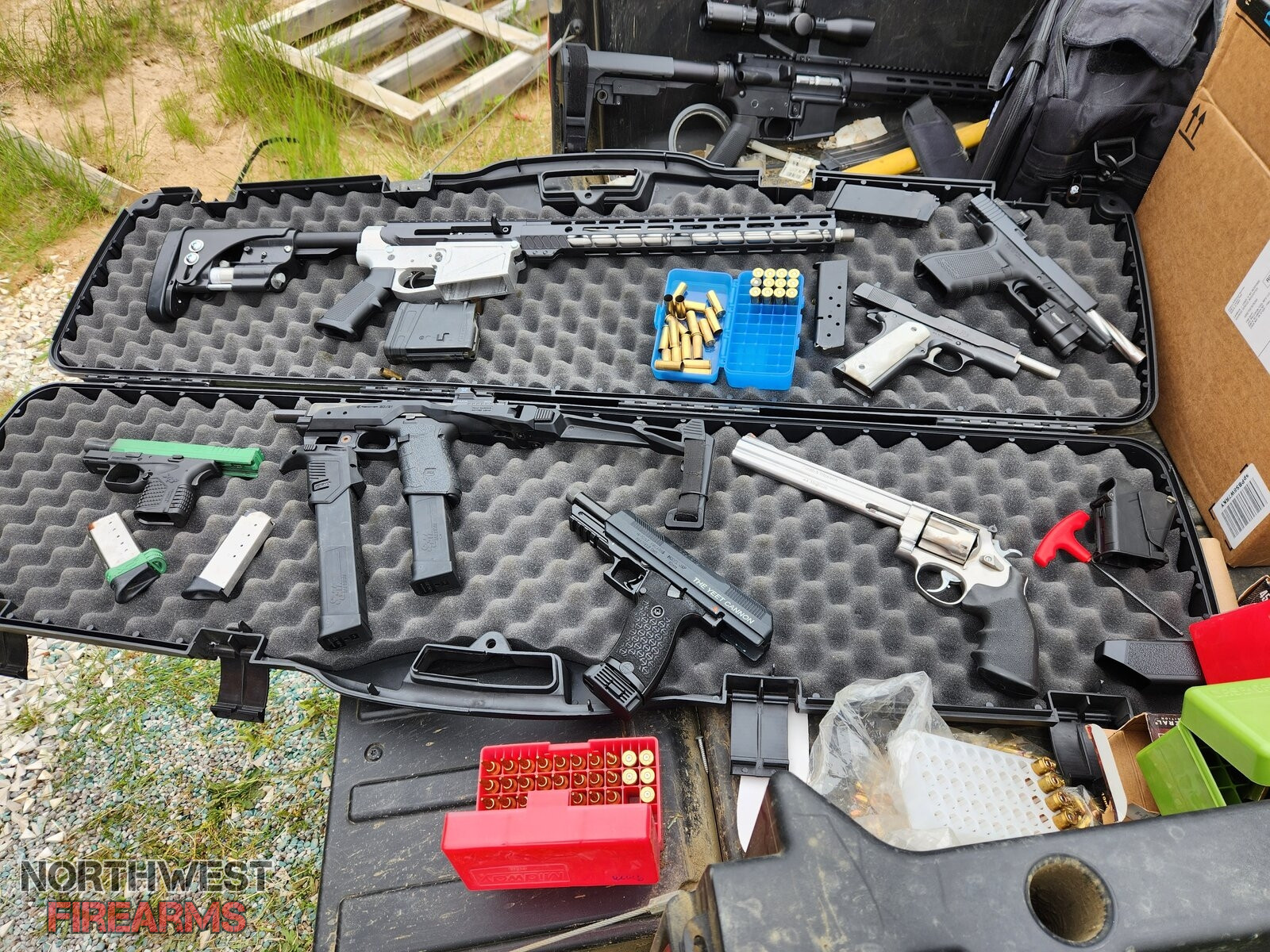

Besides some light strikes it's operational. Really needs a plug for.the gas key slot. Elite series plus microslick on the BC seems to be working.

20230803_122134.jpg 20230804_102838.jpg 20230804_102847.jpg 20230804_102452.jpg 20230804_112126.jpg
