Ar-15 barrel nut help

Messages
801
Reactions
739
So I picked up a new pistol upper and turns out the hand guard is turned slightly. It attaches to the barrel nut with some screws. So to get the hand guard lined up the barrel but is loose and if I tighten the barrel nut the screw holes won’t line up. Can I back the barrel nut all the way off and try to get it tighten up so it lines up? Or is there a right way to do it?ive never put one on so this is a first to me.


kbf64

Messages
338
Reactions
442
some handguards have the timing with the tightness of the nut, I don't really like this design, because you have to get it just right to get your rail to match. A few manufatures have ones where the nut tightness is independent of the handguard alignment, which I like. I have a few of the aero precision like this that are great to have, though I've been waiting months to get a FDE on from them.


Tony617

Messages
2,841
Reactions
4,046
When I have installed Troy hand guard with a standard barrel but doesn’t go on straight line. I put the 4 retaining screws in first, tighten them down and back off on tight by loosening the screws back like 1 or 2 turns. The grip slides in a slight angle so once you reach the upper receiver you twist it gently and line up with the upper receiver marks.

That assumes that barrel nut is timed with gas tube as well a standard barrel nut has teeth on them. I take my time since I don’t want to damage the rail or anything and it take me a few tries sometimes.

OP
J
Messages
801
Reactions
739

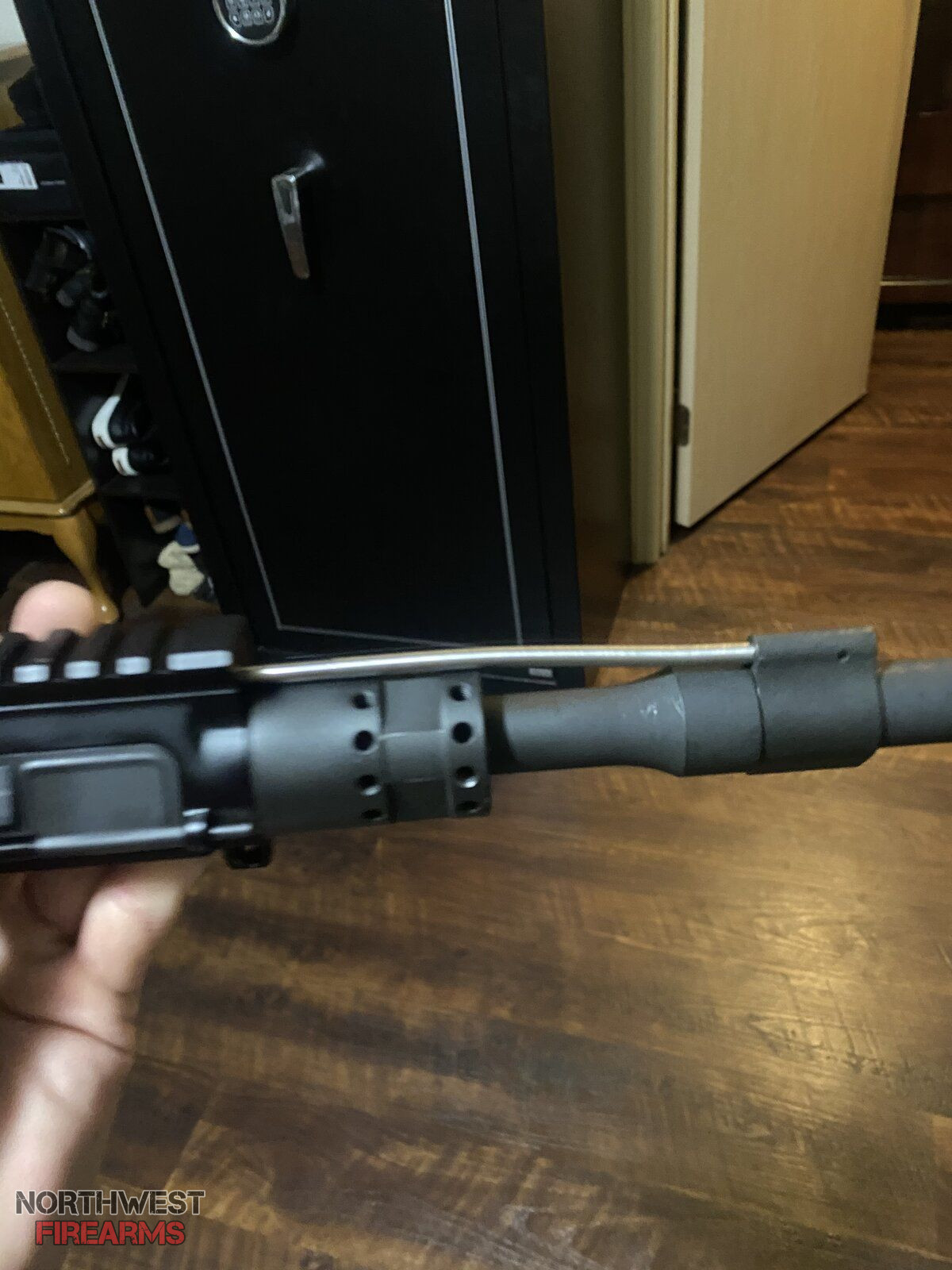

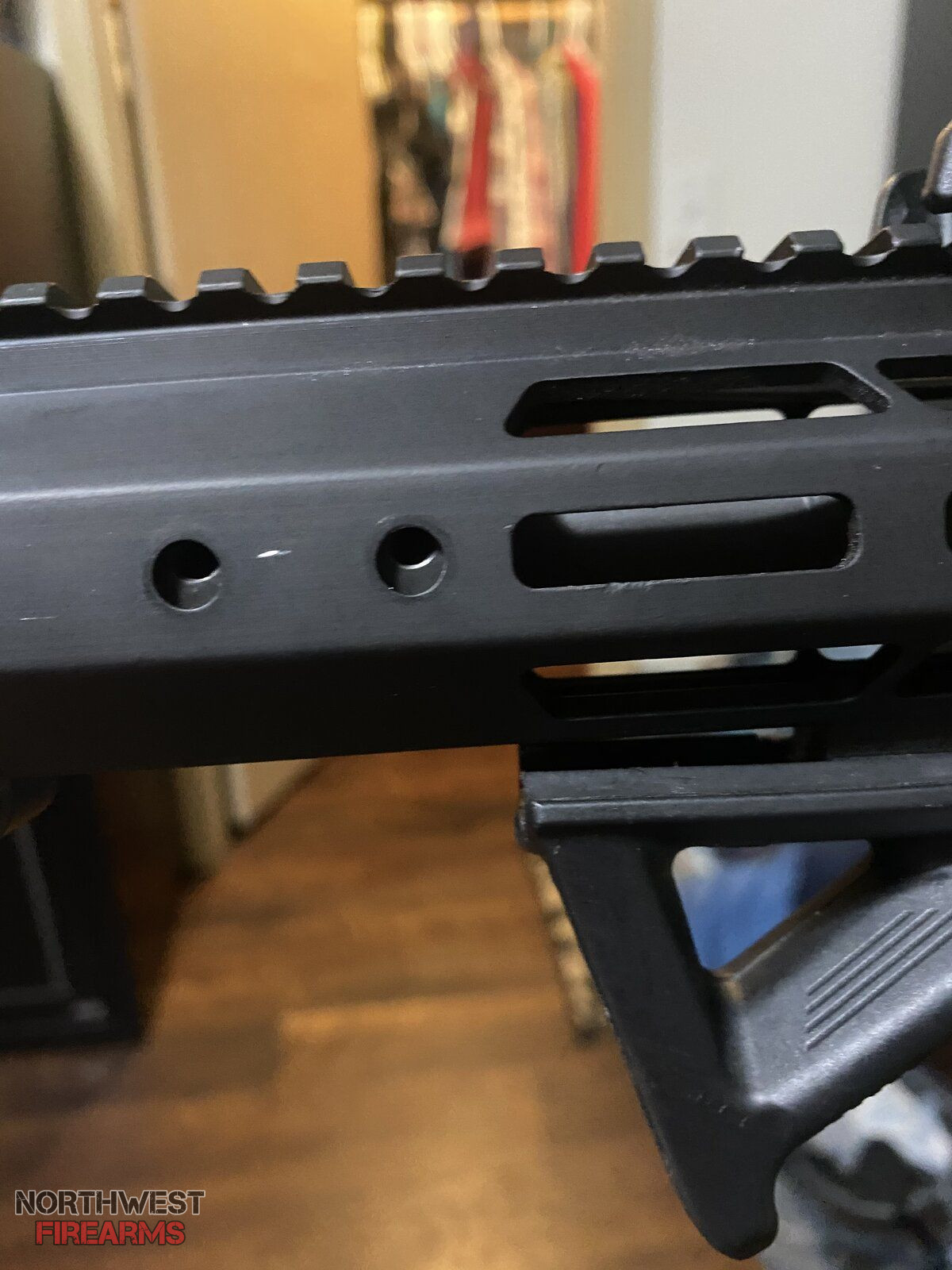

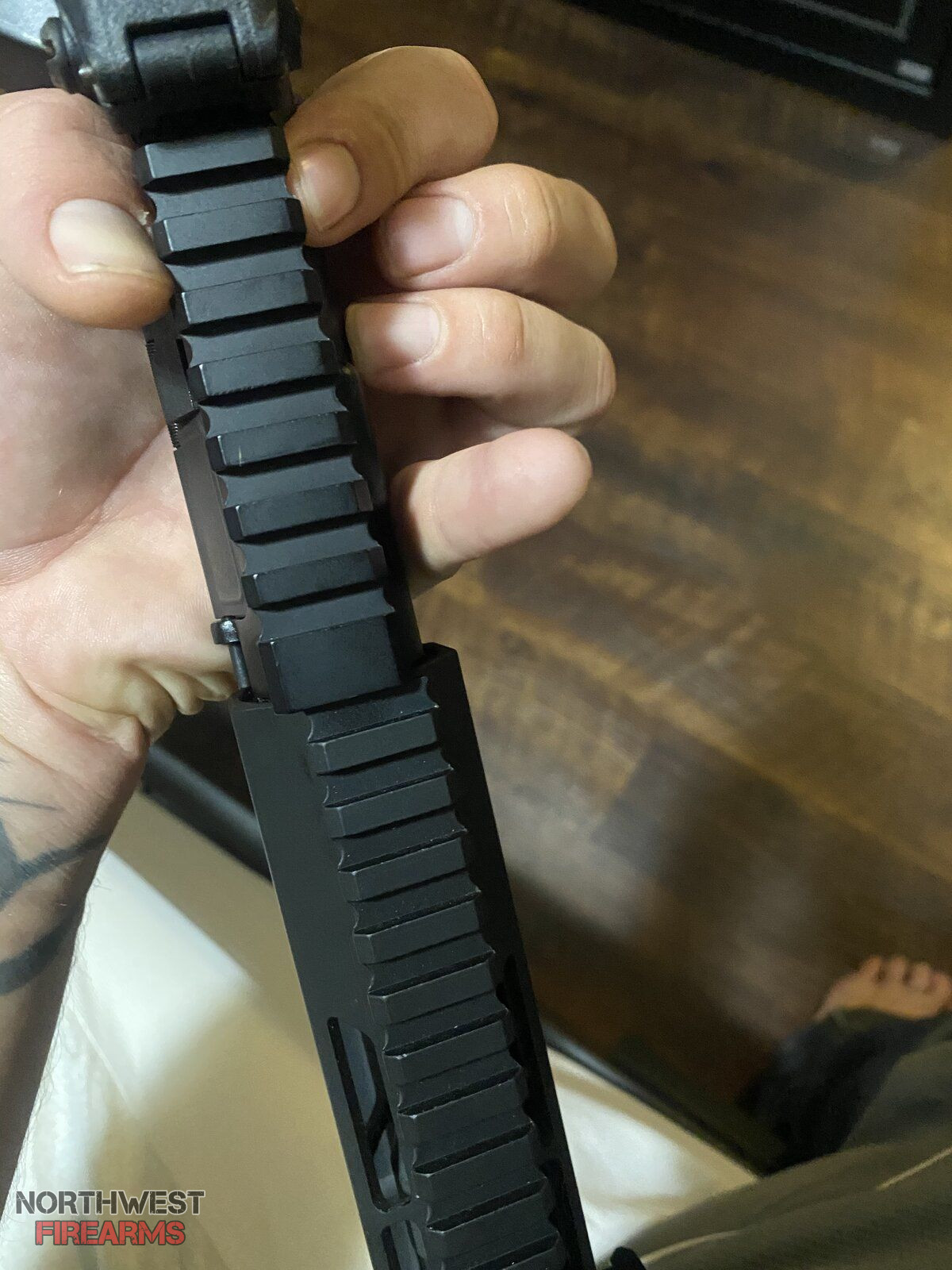

The second picture shows where the threads need to be and the last picture shows the angle if the holes are aligned.it wasn’t that bad when I bought it. But after messing with it it has just got worse


solv3nt

Messages
2,558
Reactions
2,875
The second picture shows where the threads need to be and the last picture shows the angle if the holes are aligned.it wasn’t that bad when I bought it. But after messing with it it has just got worse

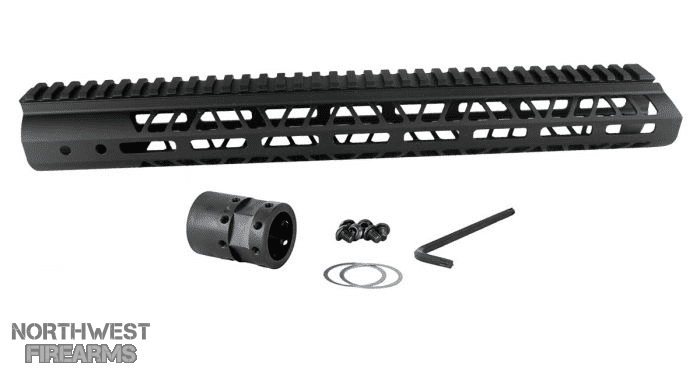

You'll need some shims. Try flipping the nut over and screwing it in from the other side first.


Tony617

Messages
2,841
Reactions
4,046
