Show us your rolling blocks

[Cerberus Group]

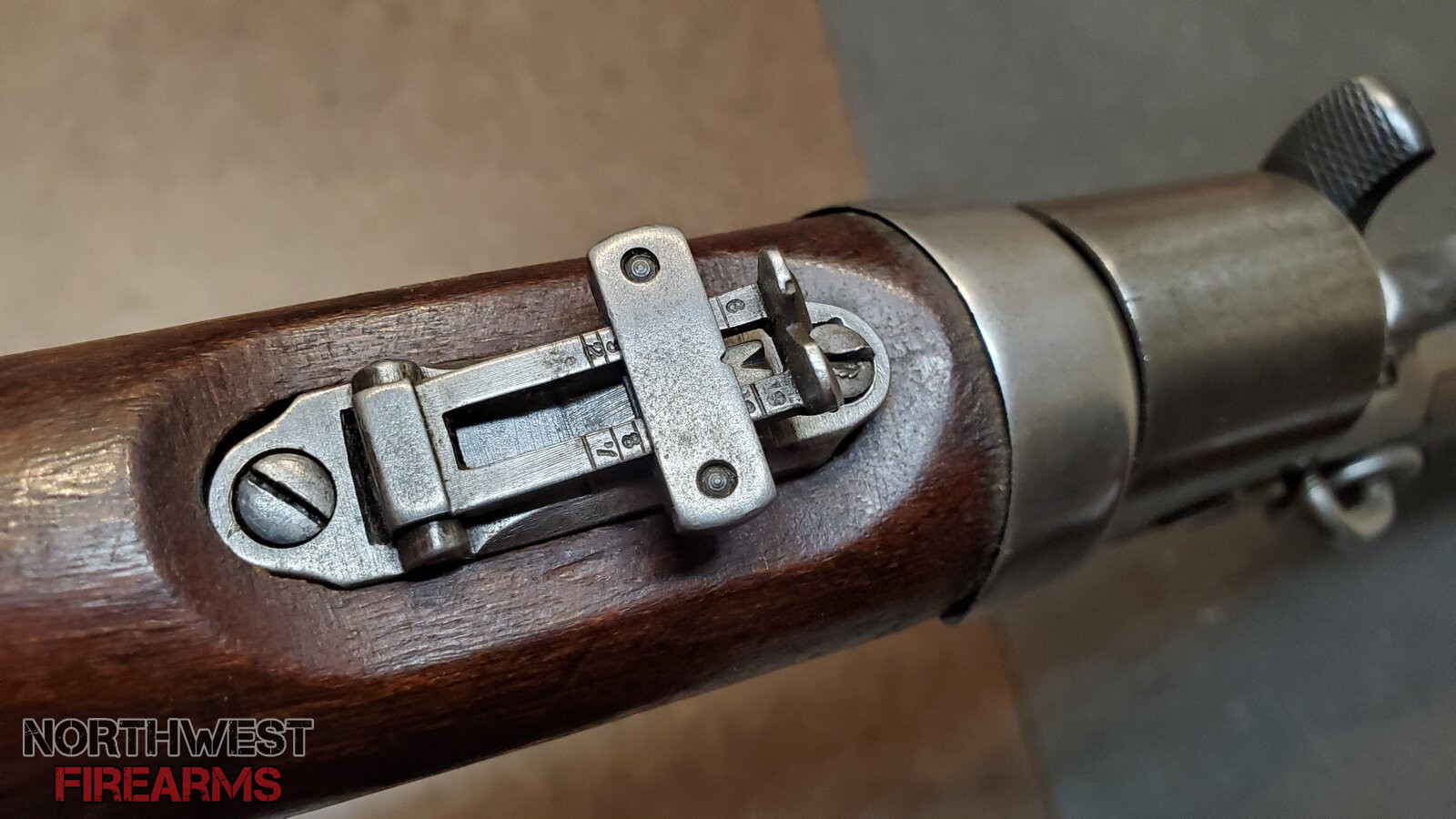

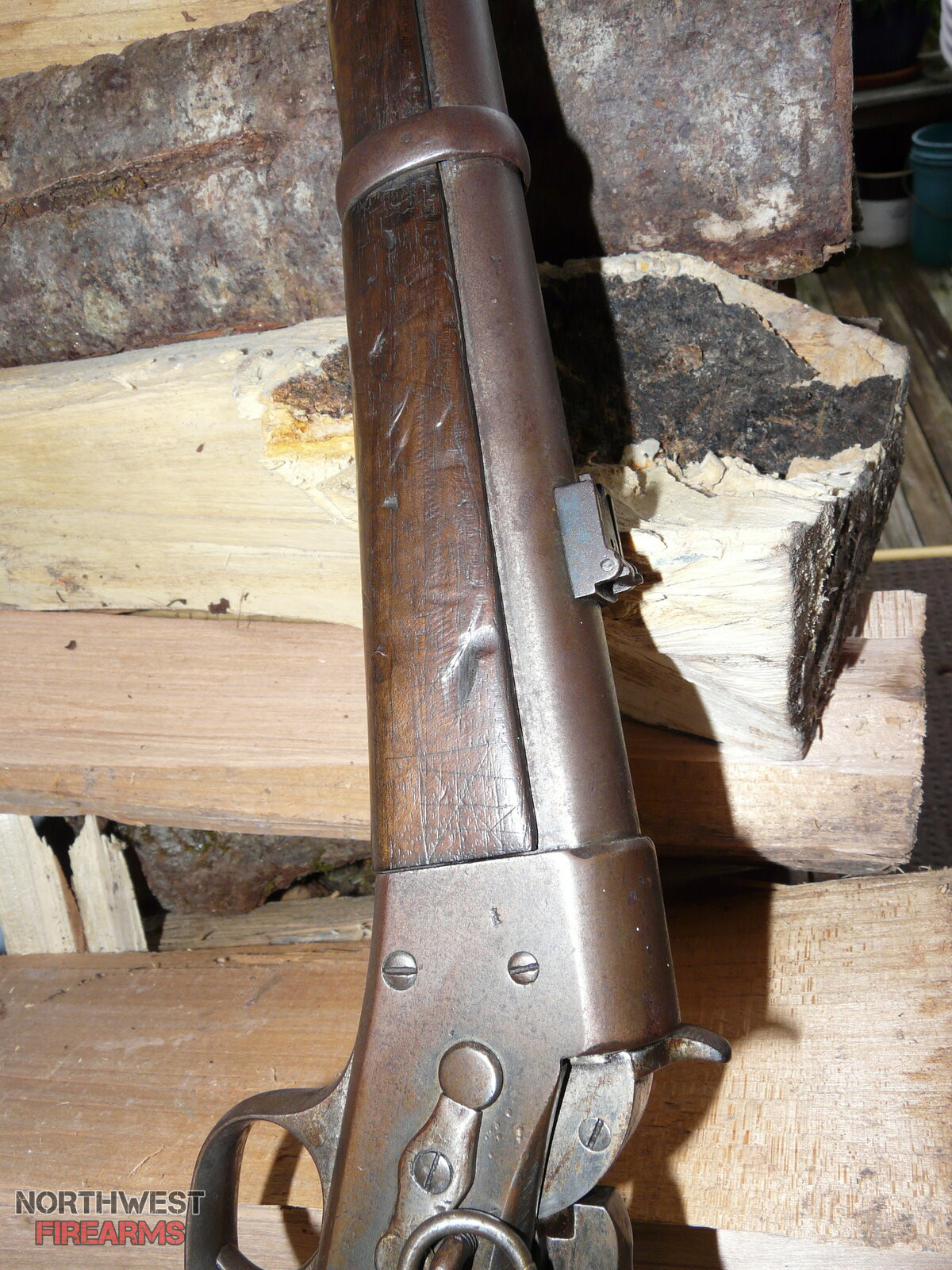

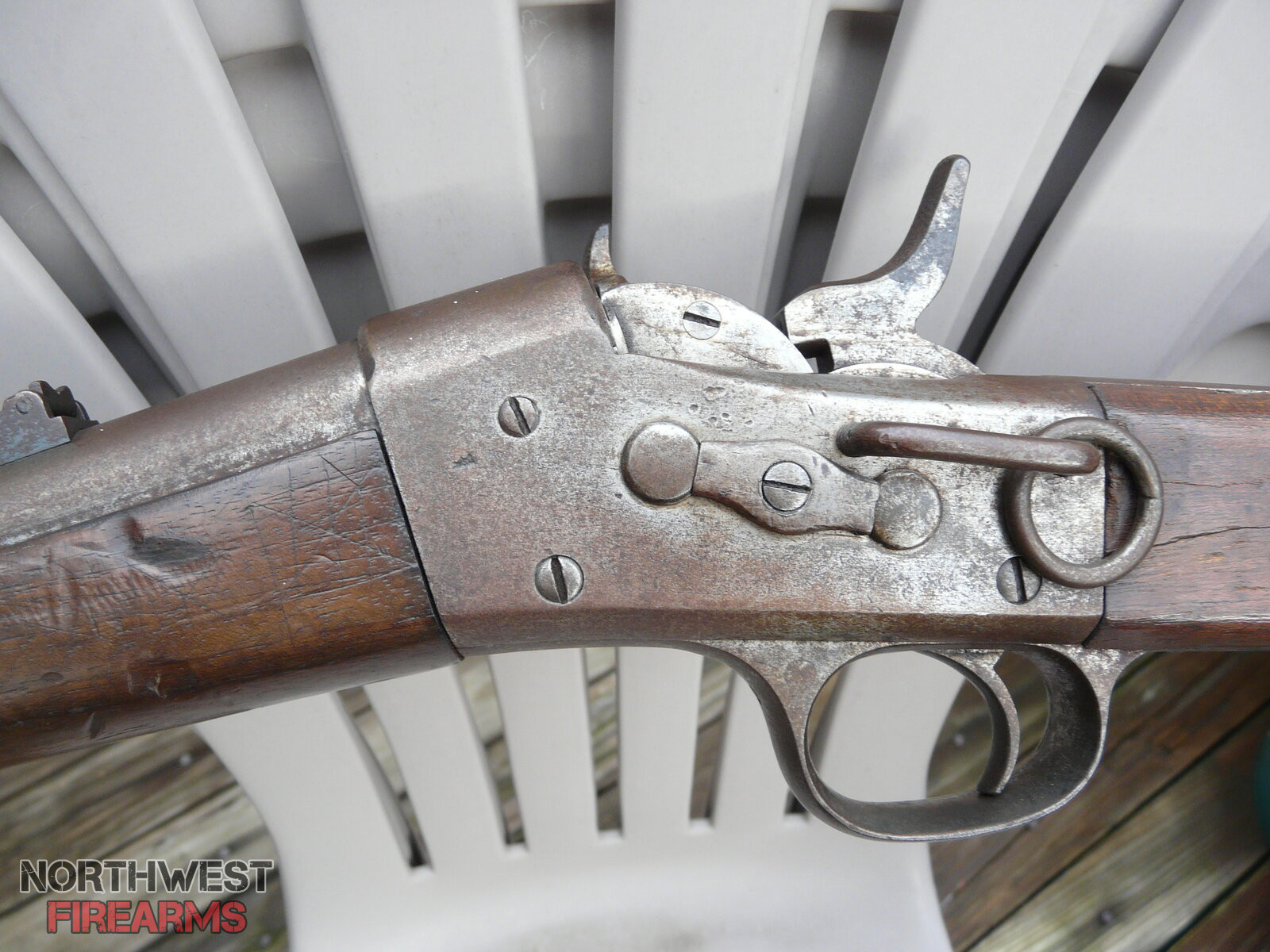

Here's my Number 5 Remington Rolling Block saddle ring carbine in 7mm...around turn of the century.

Made in 7mm Spanish, but will fire 7mm Mauser rounds.

Read More



[Hueco]

That's awesome! Is my understanding of the action correct?

You cock the hammer back to a full cock position,
roll the rolling block to the rear
pull the spent case (or does the rolling block have an extractor mechanism?)
add in a new cartridge,
rotate the rolling block to the forward position,
and now you're ready to fire.
When firing, the hammer engages with the rolling block to strengthen/support a sealed breach.

Is the design inherently stronger or weaker than a falling block?



[titsonritz]

That's awesome! Is my understanding of the action correct?

You cock the hammer back to a full cock position,
roll the rolling block to the rear
pull the spent case (or does the rolling block have an extractor mechanism?)
add in a new cartridge,
rotate the rolling block to the forward position,
and now you're ready to fire.
When firing, the hammer engages with the rolling block to strengthen/support a sealed breach.

Is the design inherently stronger or weaker than a falling block?



[Hueco]

Thank you for that. I'm super impressed that he milled out a legit action for demo purposes...kind of wish I had a mill and the money to do that to a lot of actions.



[edzz]

This thread reminds me of my first cartridge loading rifle.




Mattel shooting irons



[TNThomas]

Looking forward to posts on here, cool design. Anybody know if there are any .38/.357 rolling blocks? They wouldnt be that old obviously.



[ZigZagZeke]

Looking forward to posts on here, cool design. Anybody know if there are any .38/.357 rolling blocks? They wouldnt be that okd obviously.

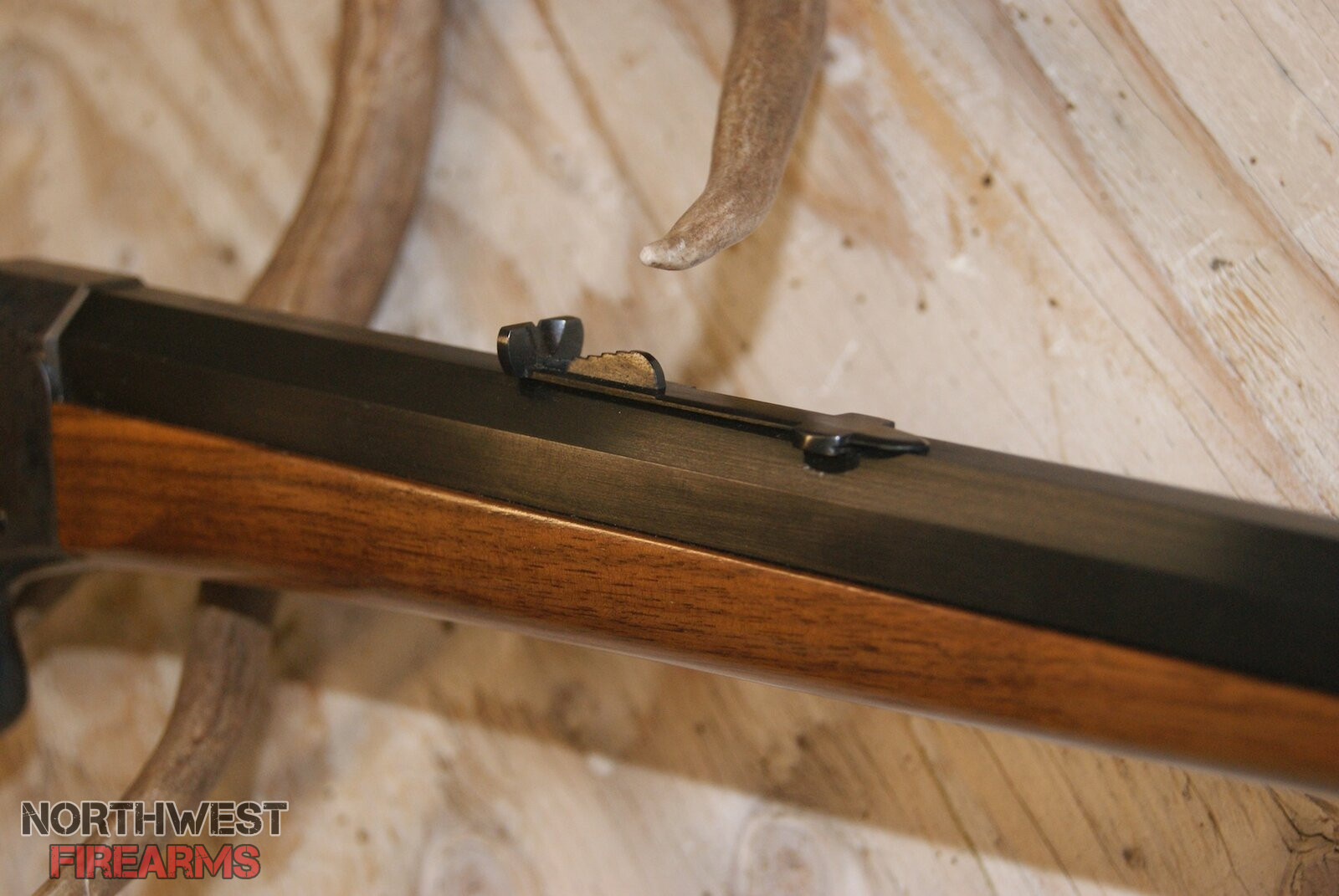

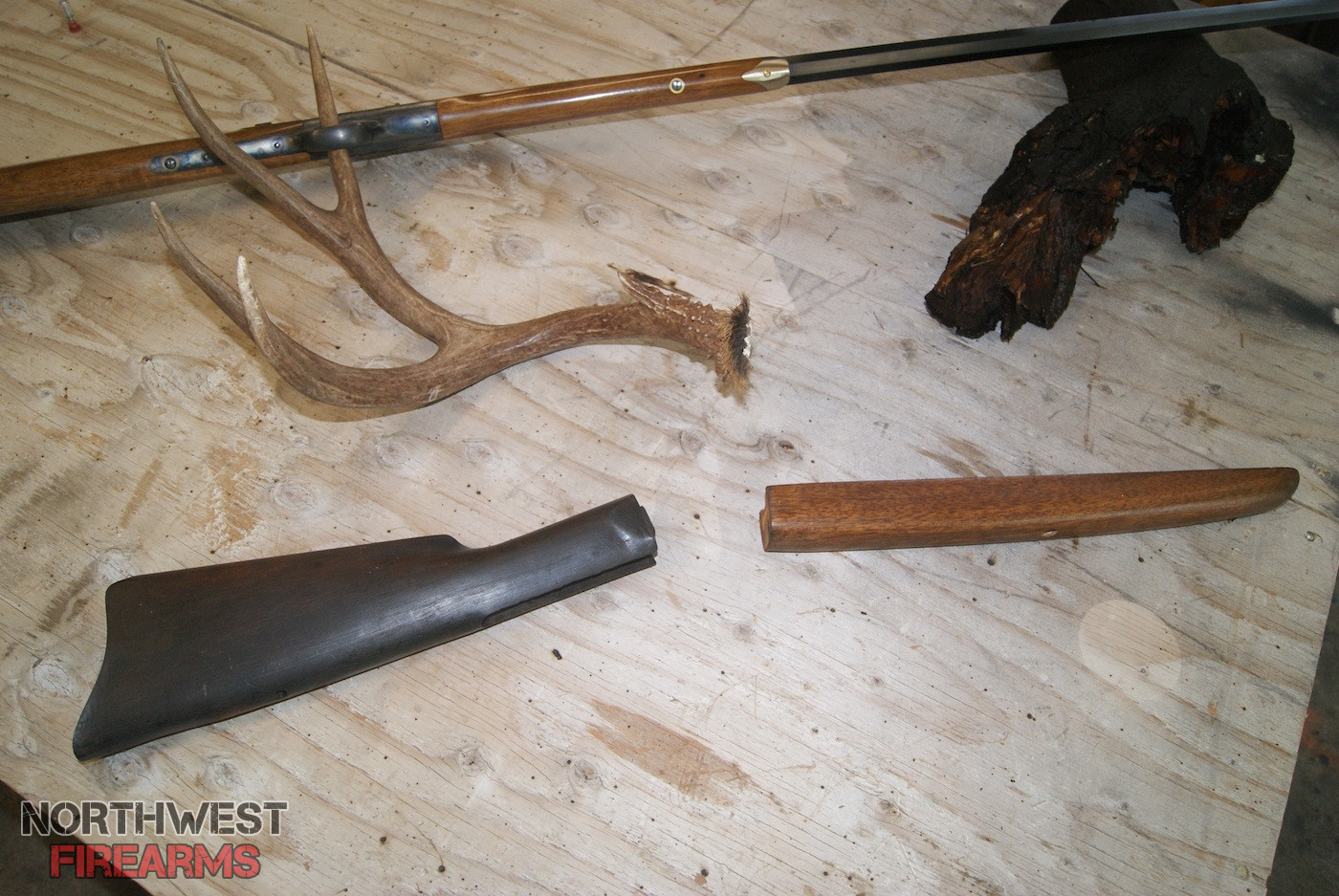

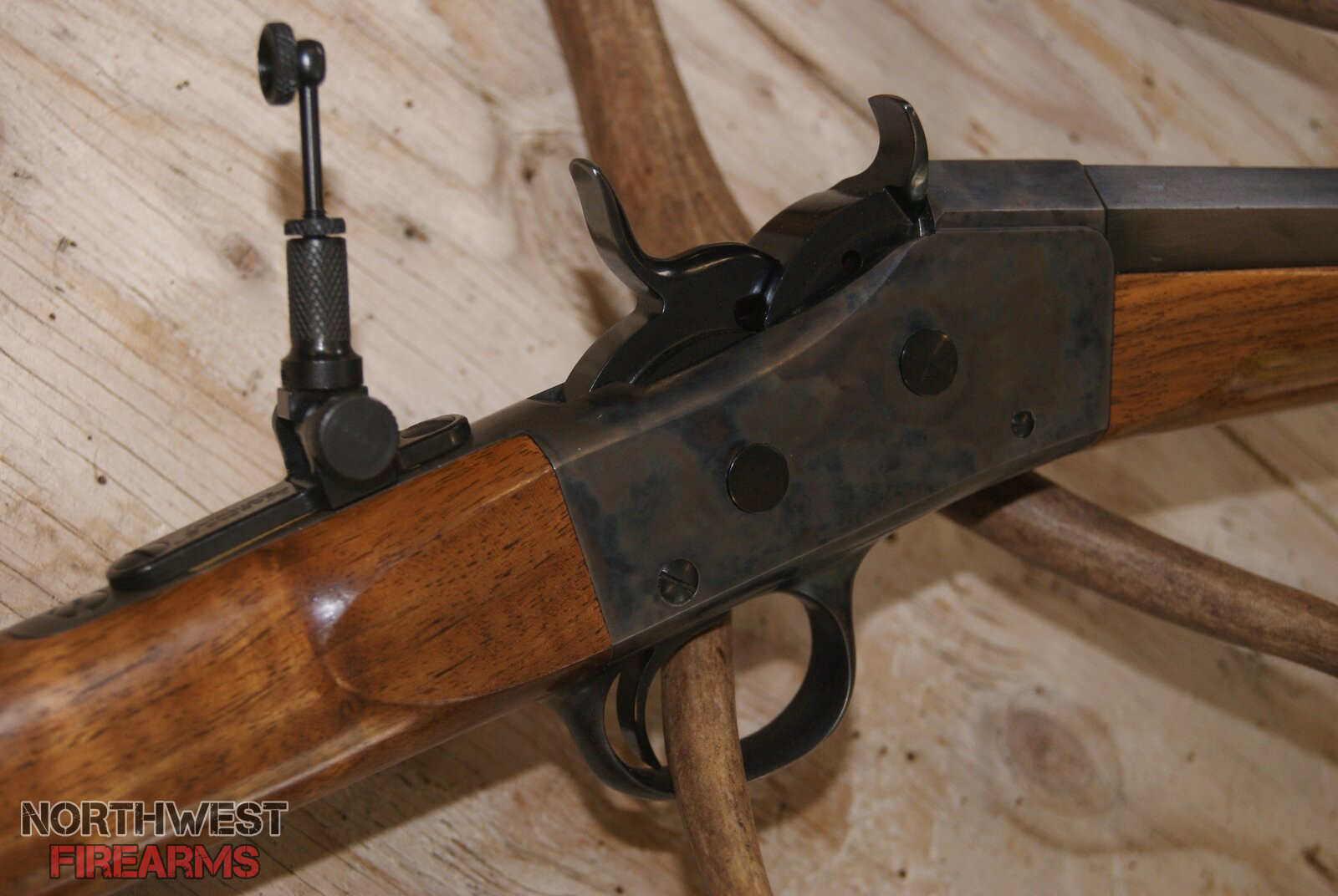

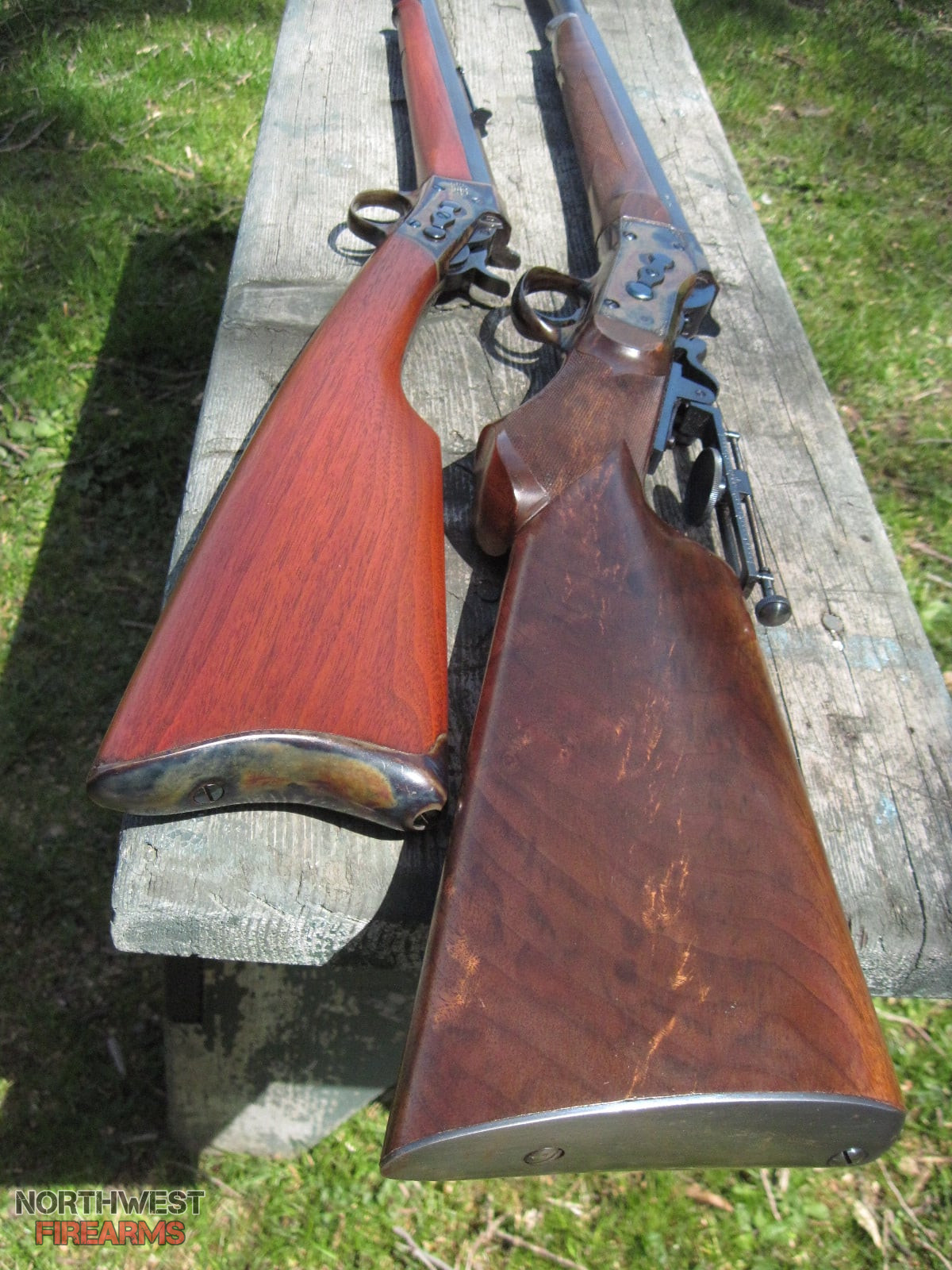

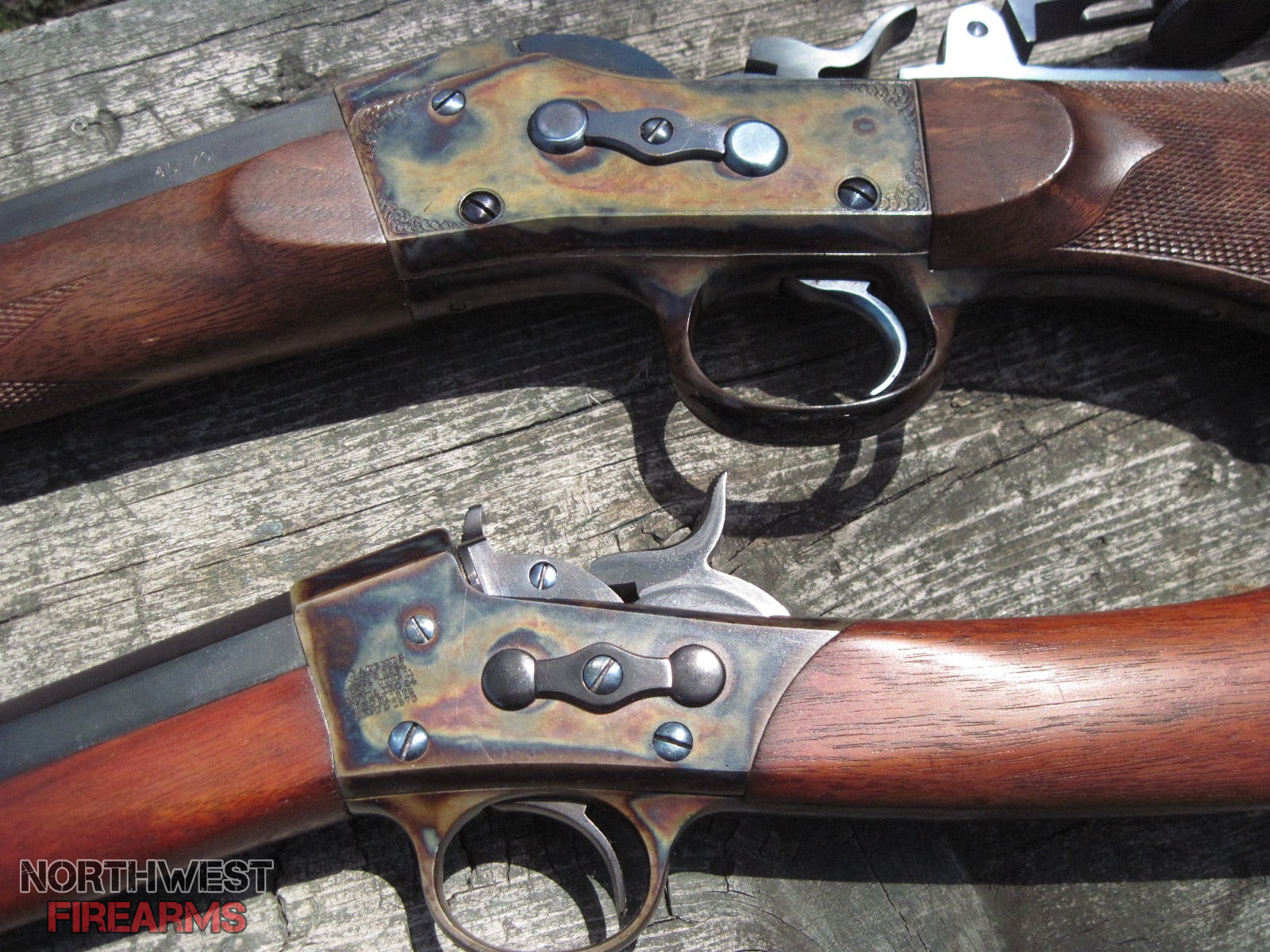

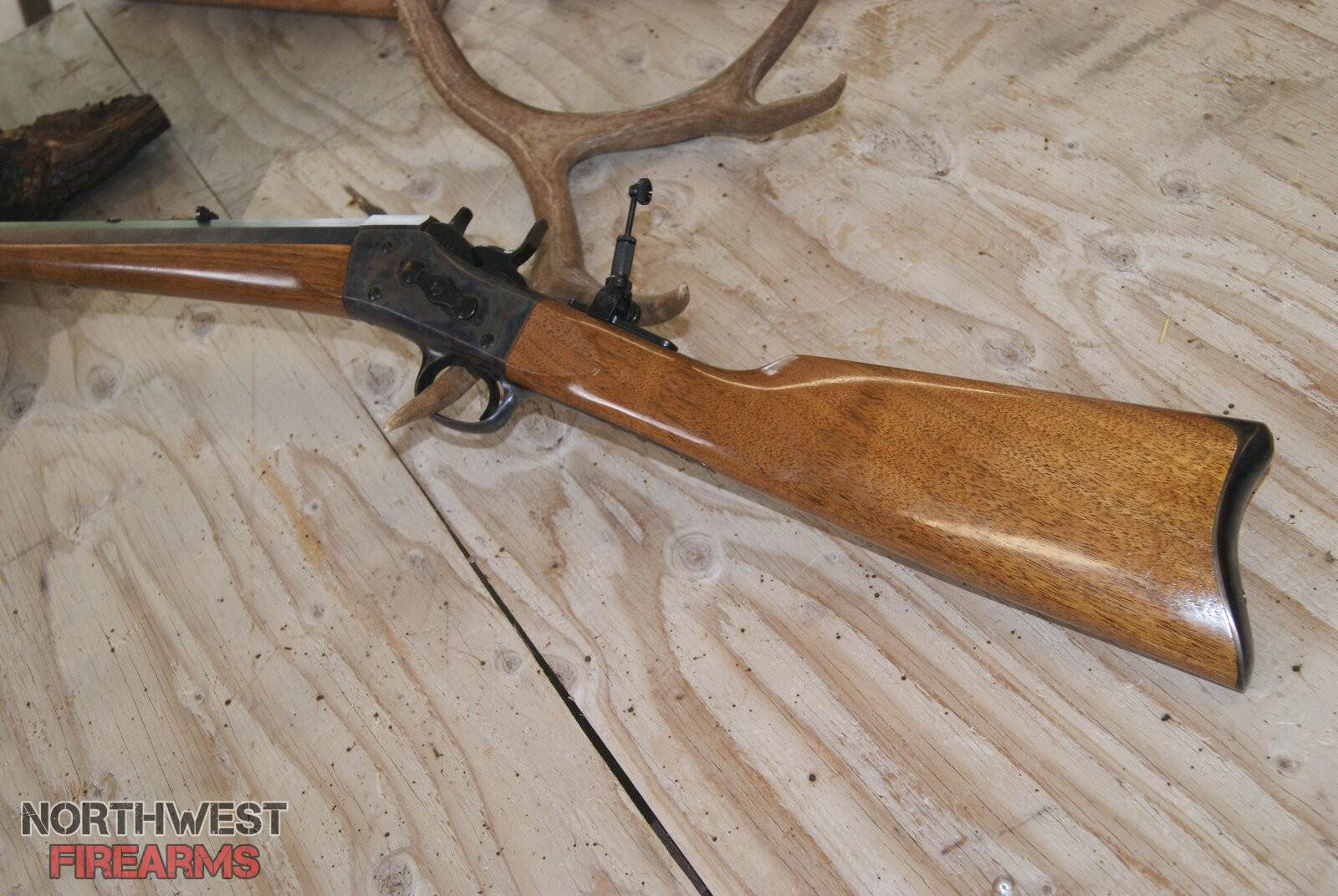

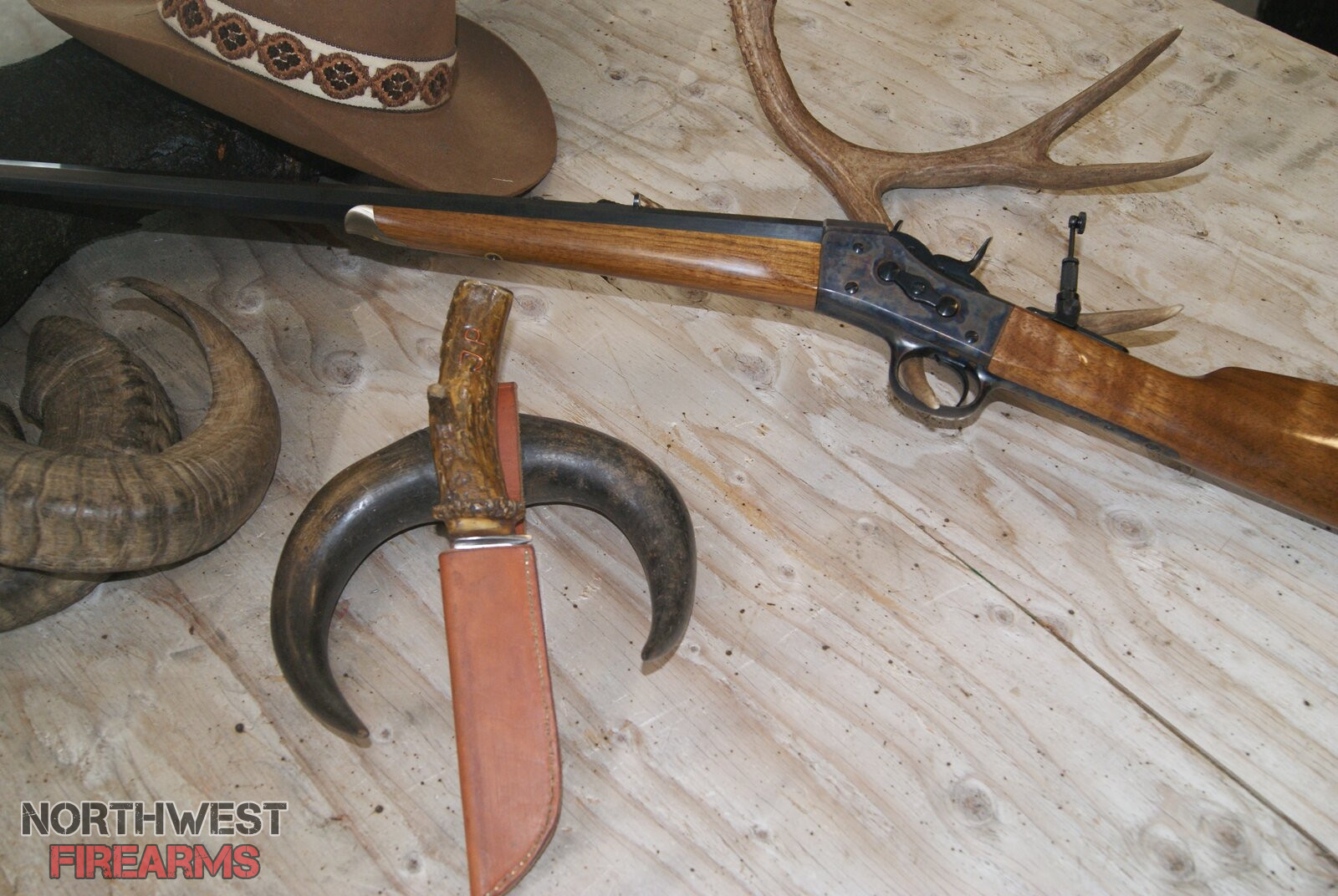

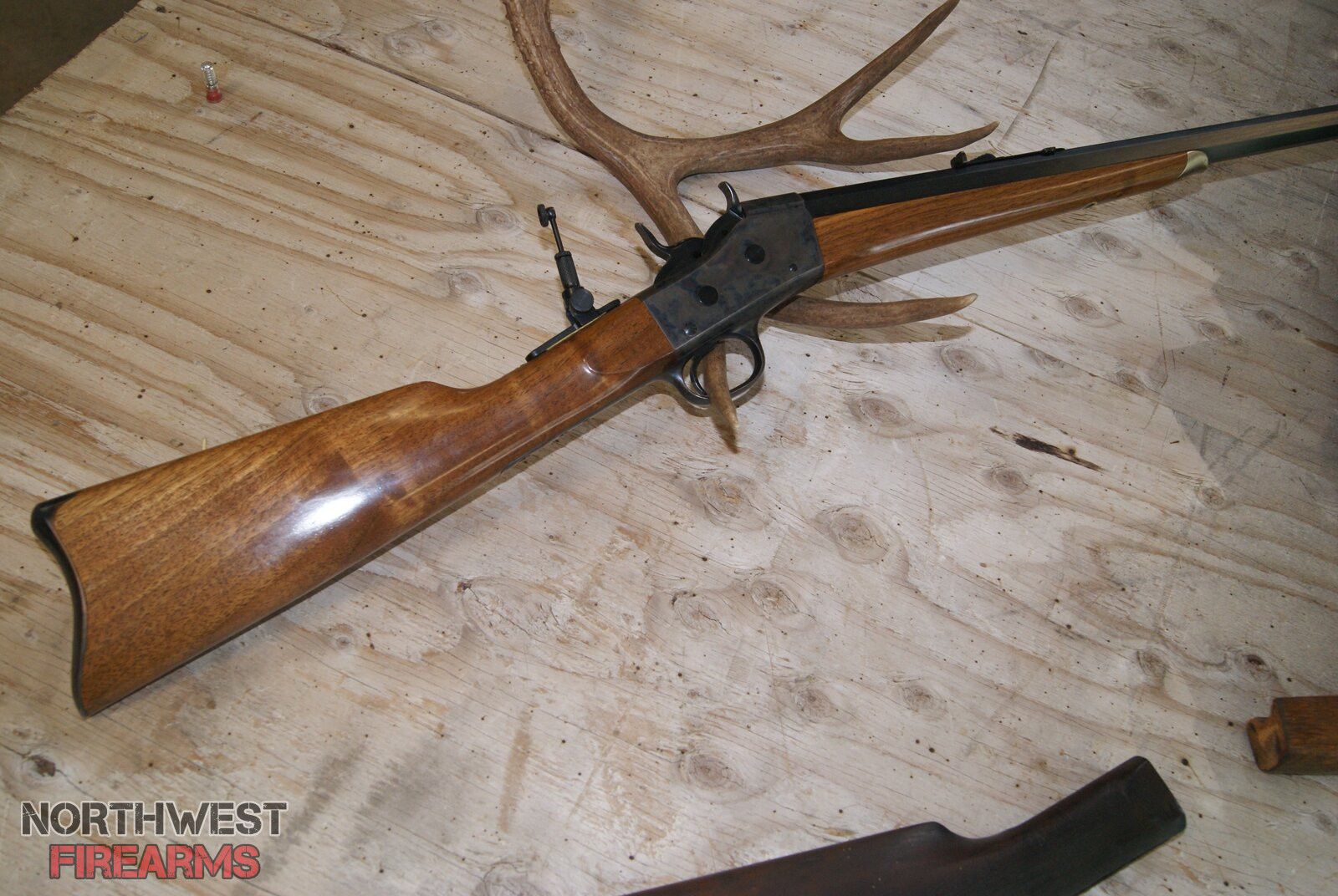

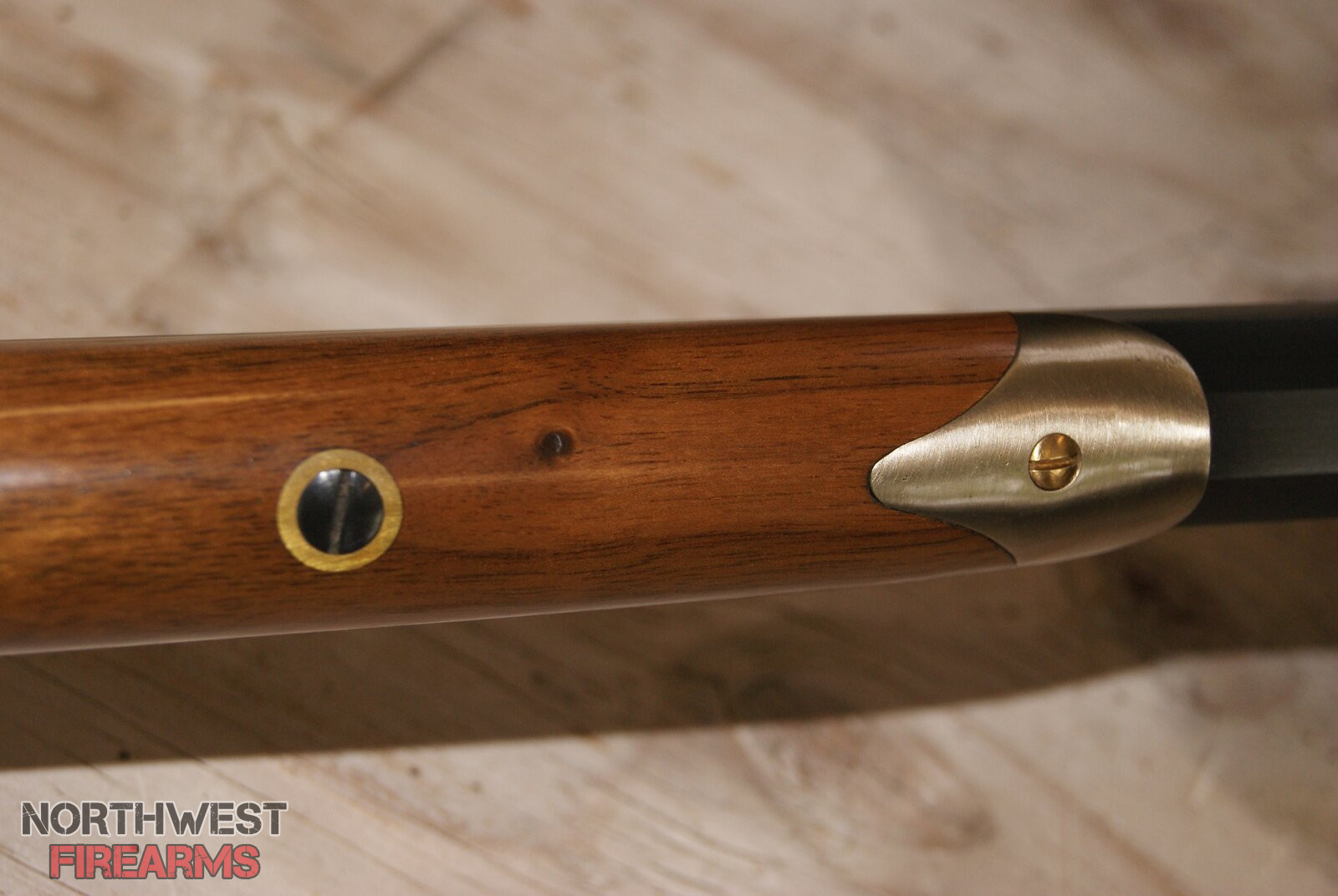

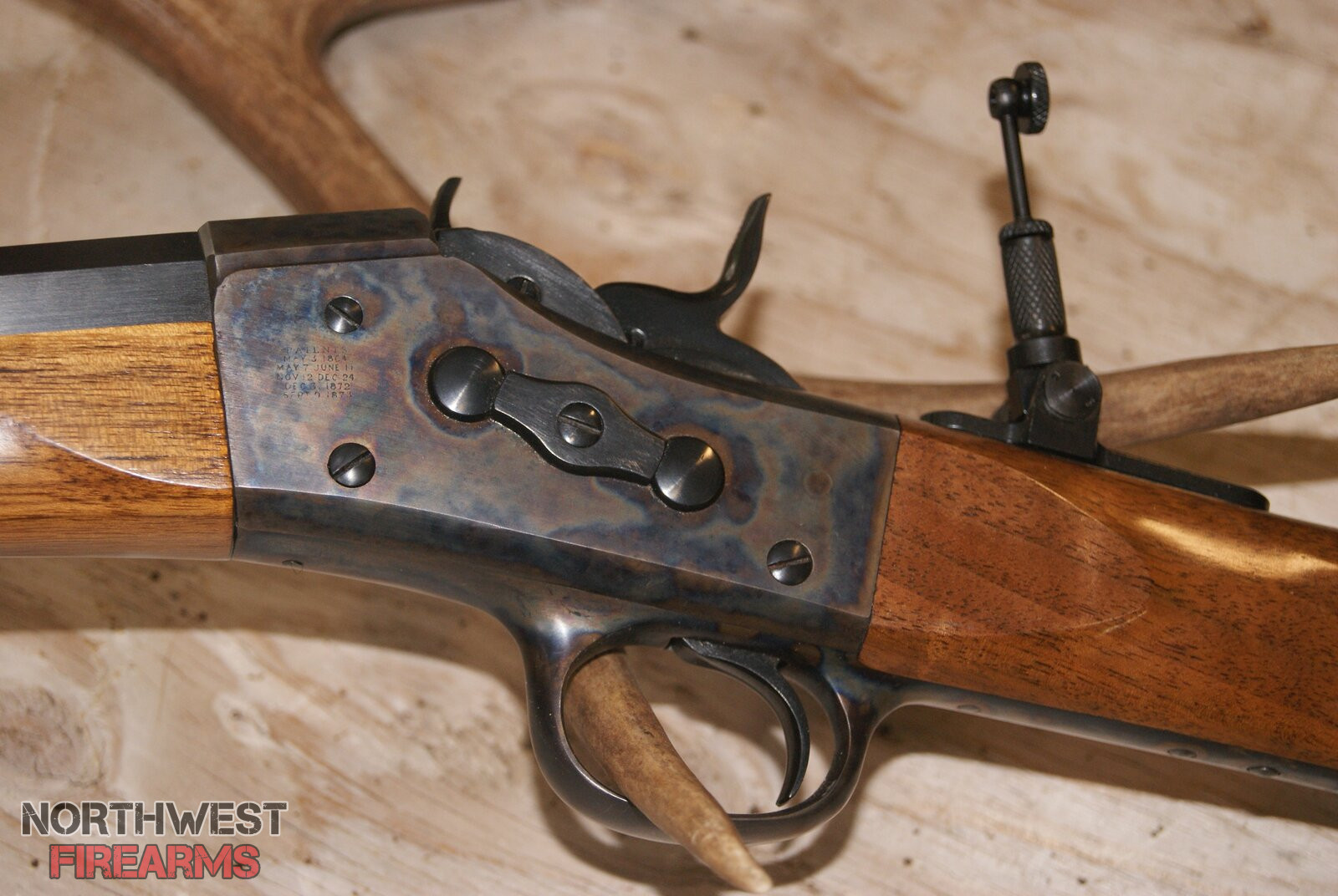

Restored #1 Sporter, barrel lined, and rechambered for .38 Special and .357 Magnum. Full octagon 28" barrel produces 1800 fps, and 1137 ft-lbs with 158 gr round nose lead .357 Mag cartridges...



[TNThomas]

Restored #1 Sporter, barrel lined, and rechambered for .38 Special and .357 Magnum. Full octagon 28" barrel produces 1800 fps with 158 gr round nose lead .357 Mag cartridges...
View attachment 1102799View attachment 1102800View attachment 1102801View attachment 1102802View attachment 1102804View attachment 1102805View attachment 1102807View attachment 1102798 View attachment 1102803

Wish granted, thanks for the pics! Very nice indeed.



[Mikej]



[Cerberus Group]

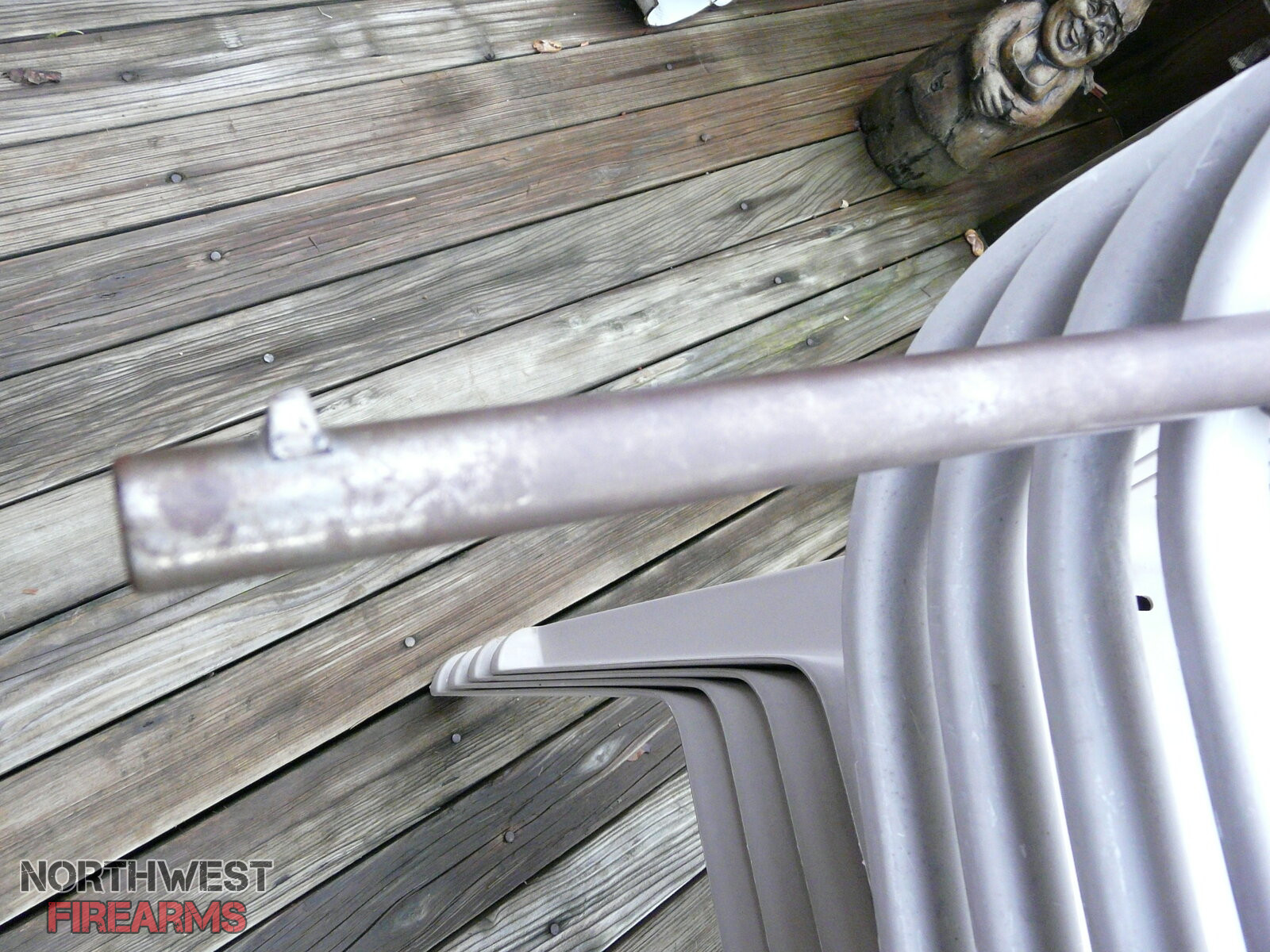

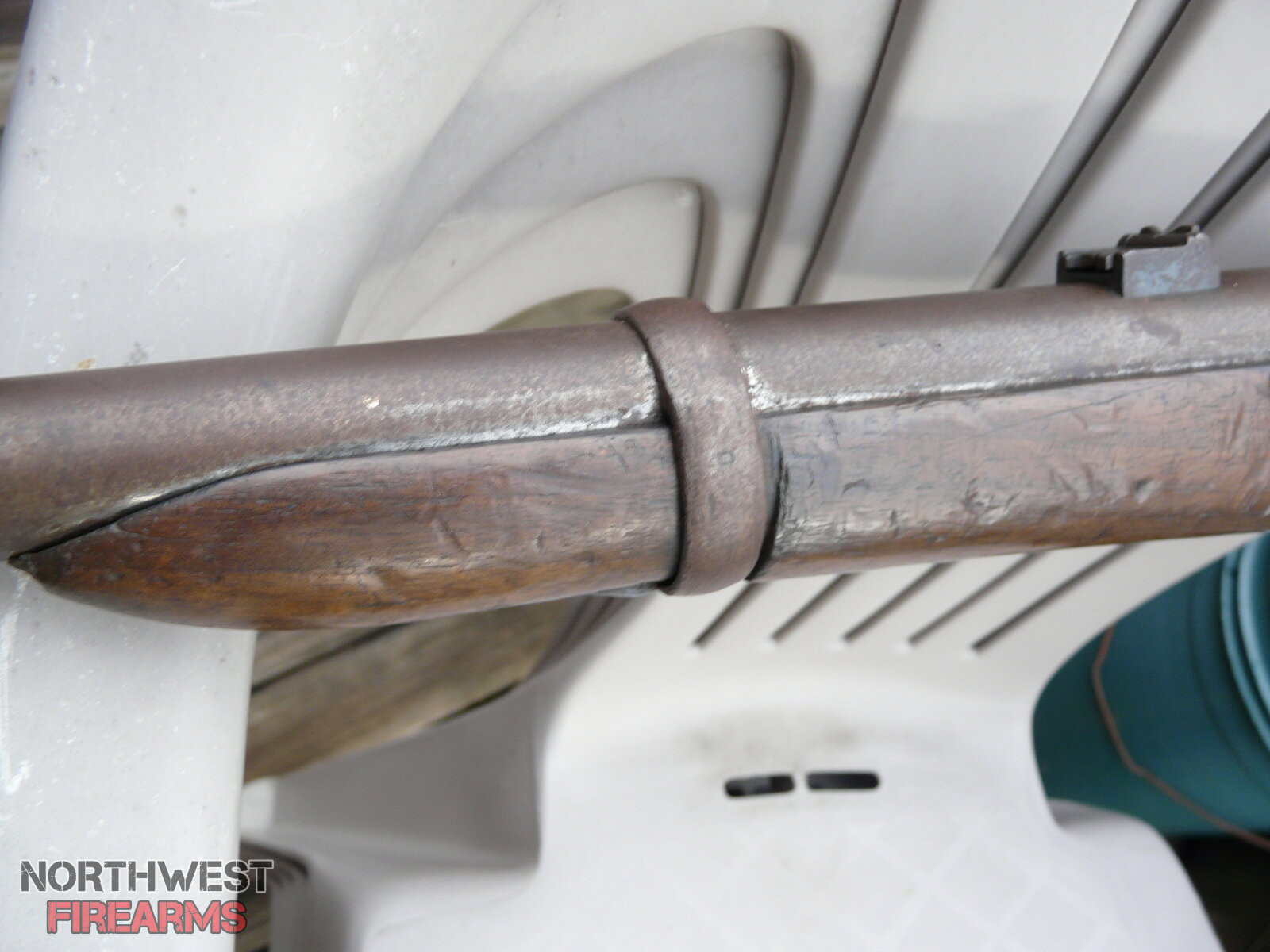

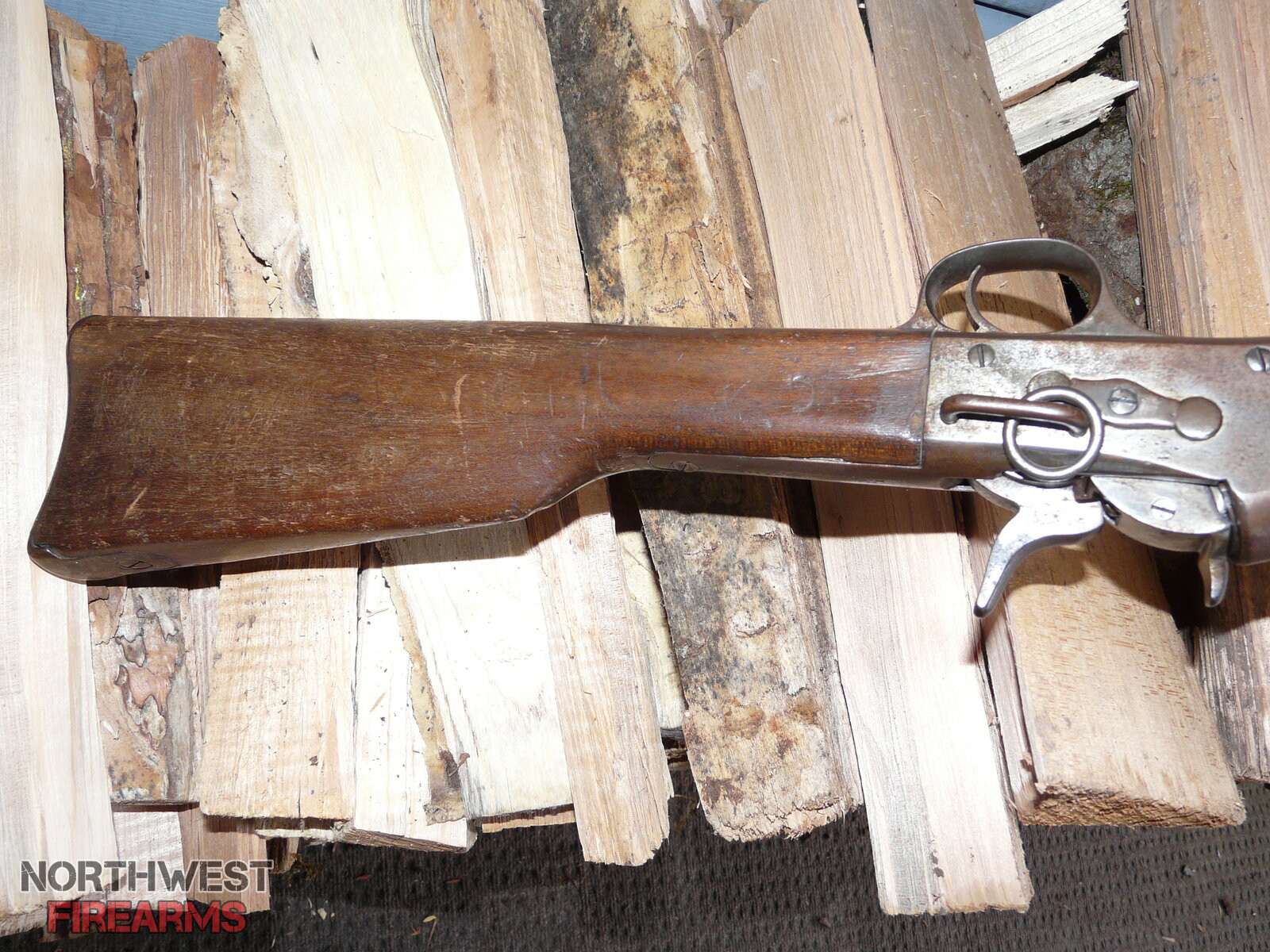

View attachment 1103416
View attachment 1103417
View attachment 1103418
View attachment 1103419
View attachment 1103420
View attachment 1103421
View attachment 1103422
View attachment 1103423

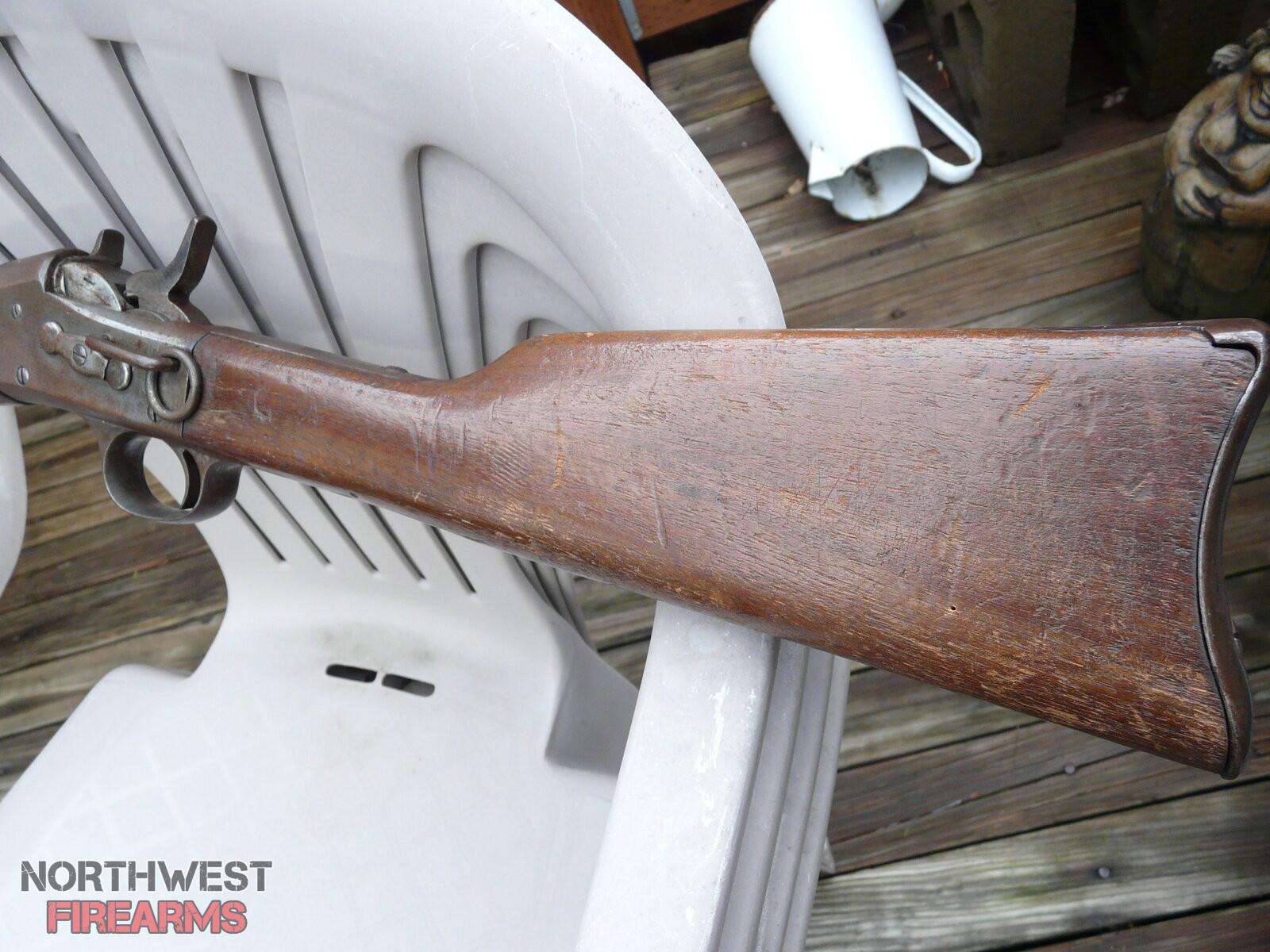

What caliber?



[Mikej]

What caliber?

LARGE?

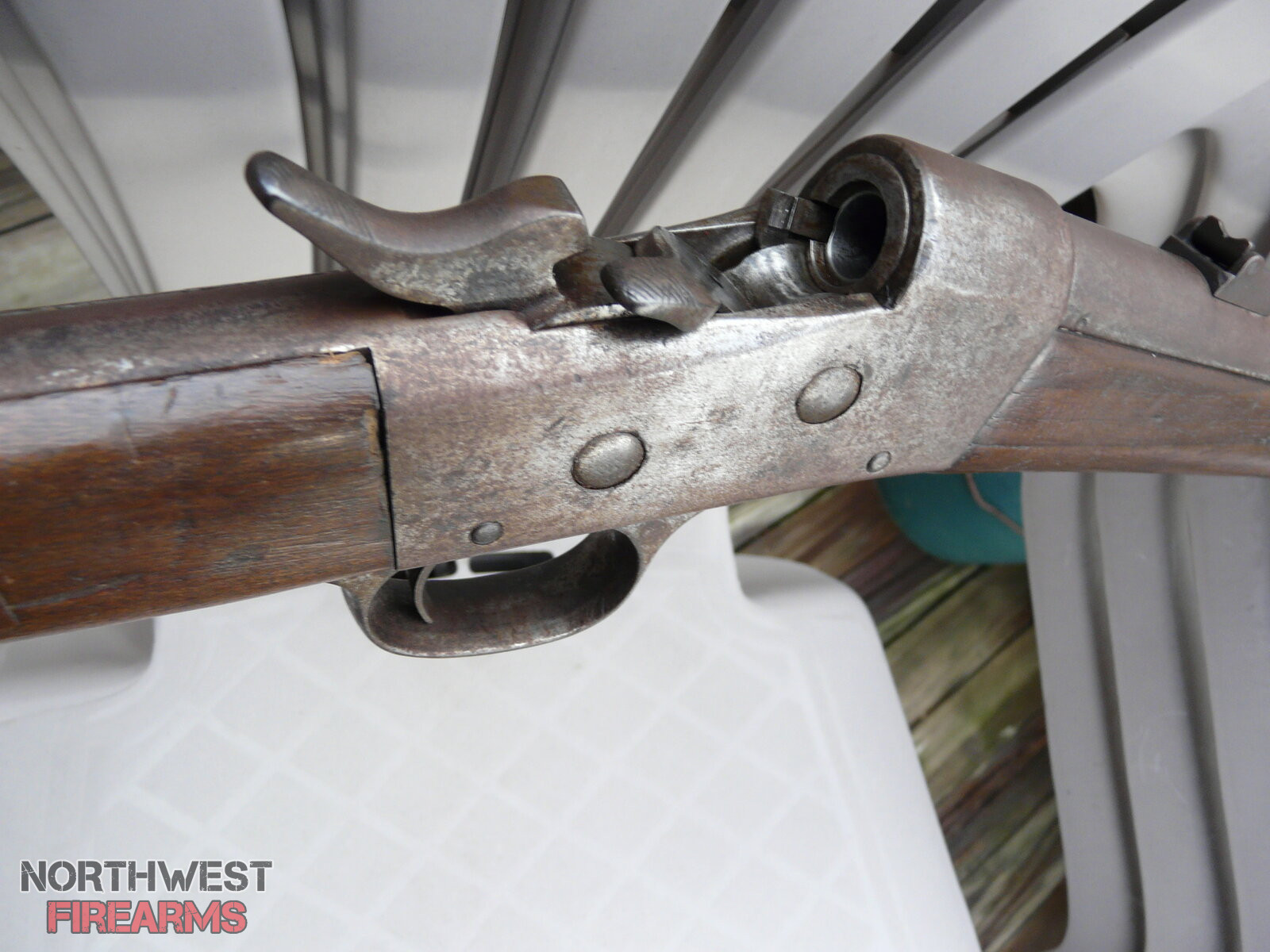

I was told by someone that should know what it was likely to be, don't recall now.

I get .0434" as best I can tell with my calipers.

The throat is all corroded from corrosive primers I presume.

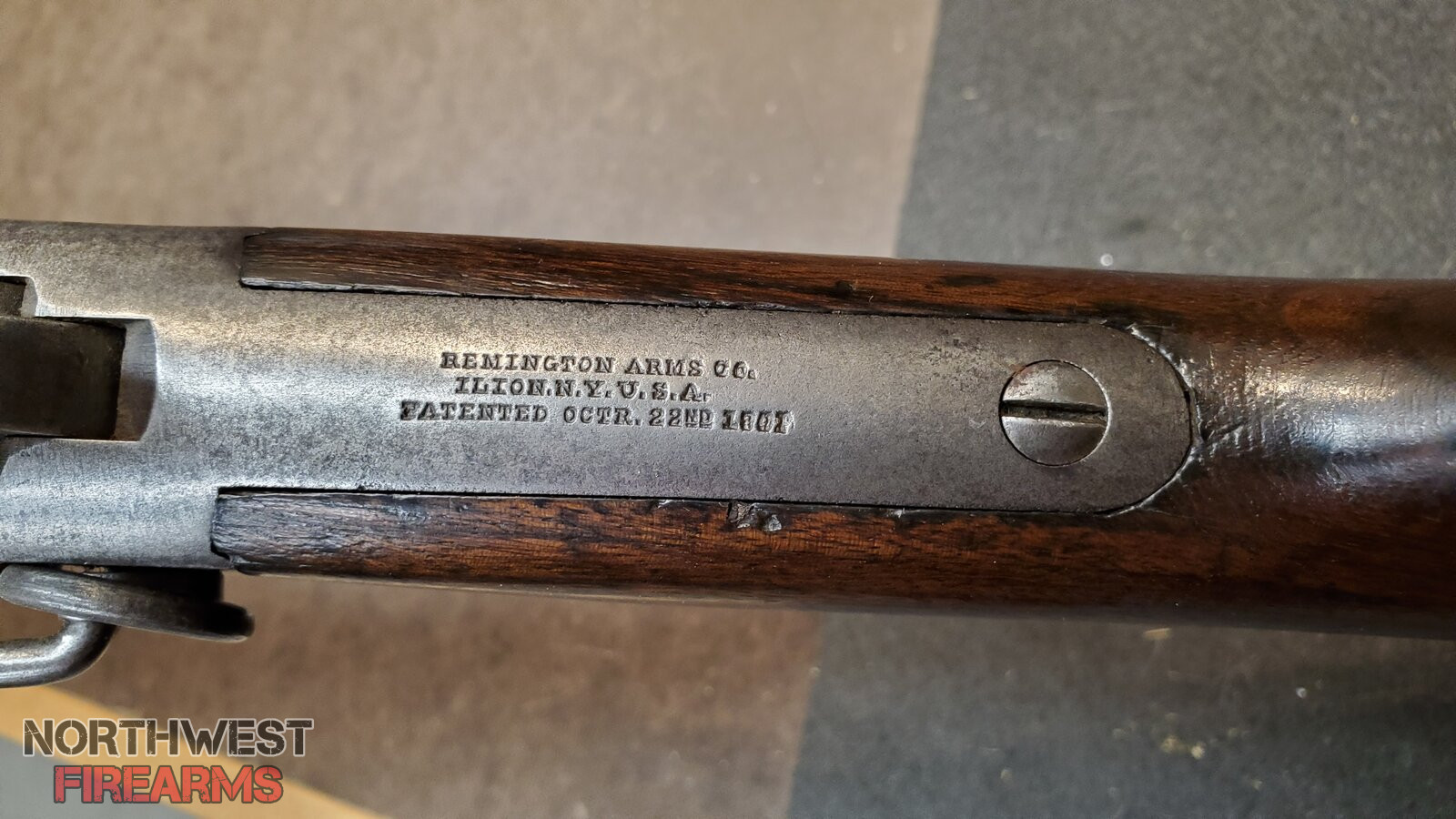

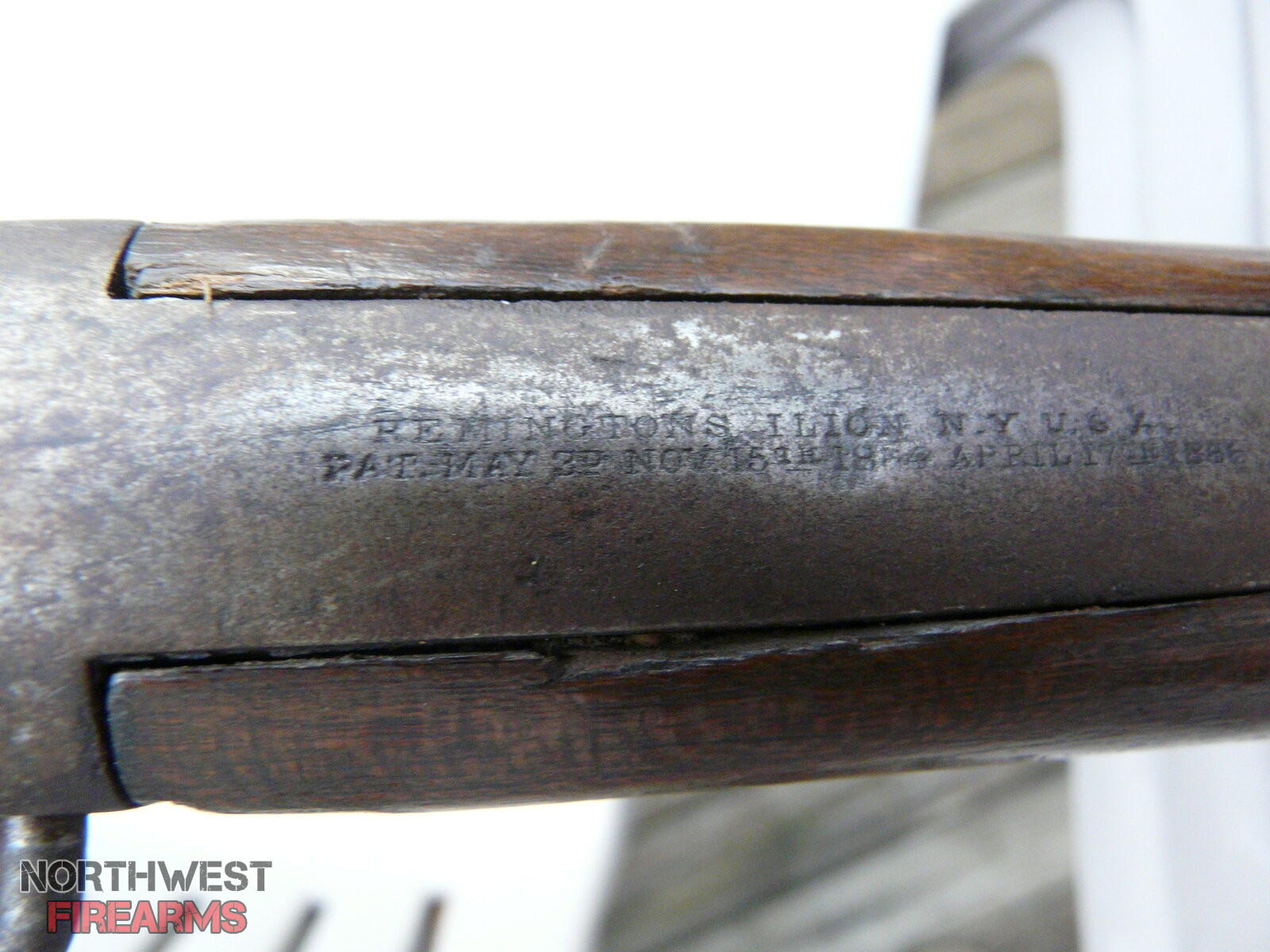

I want to say the second patent date is 1866. I seem to remember getting a possible manufacture date on the rife of 1871. It's been a long time since I've eve had it out of the safe.
My dad got into a gunshop biz with his brother in SoCal when he got out of the navy in '47. he had about eight guns he gave me before he passed in 2010. most of them were like this one. I had a Win M66 and 86. Burgess shotgun. Old Mauser. His personally sporterized M17 derr rifle, I still have that one. His Dads police service S&W M15 and acoupel other junk pistols. These rifles he had were all in bad shape, except his deer rifle. There's a lot more to it. I've turned most of them into other guns $$. I'd like to think about doing a job on this like Zeke did to his.



[oldglassmaker]

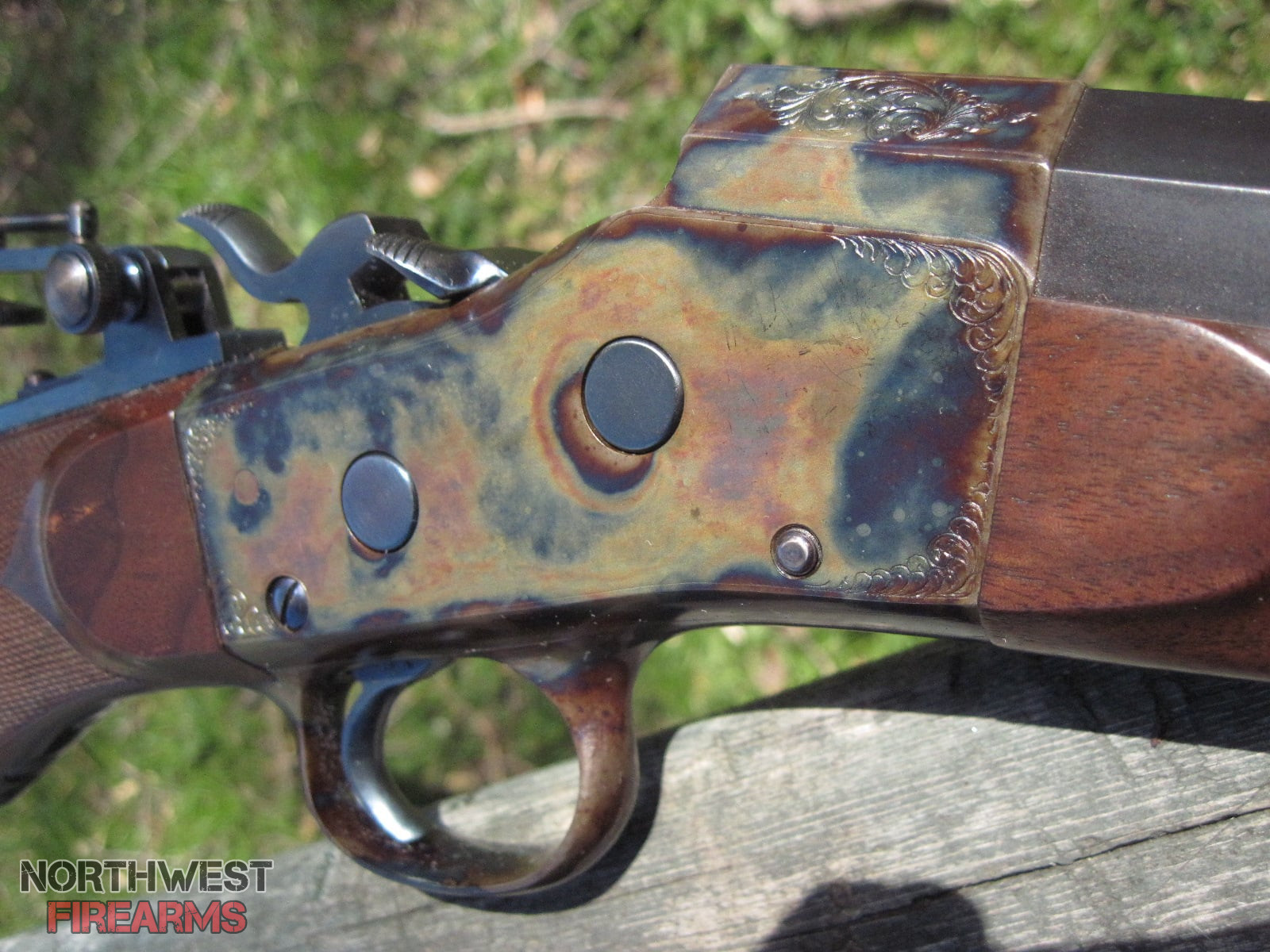

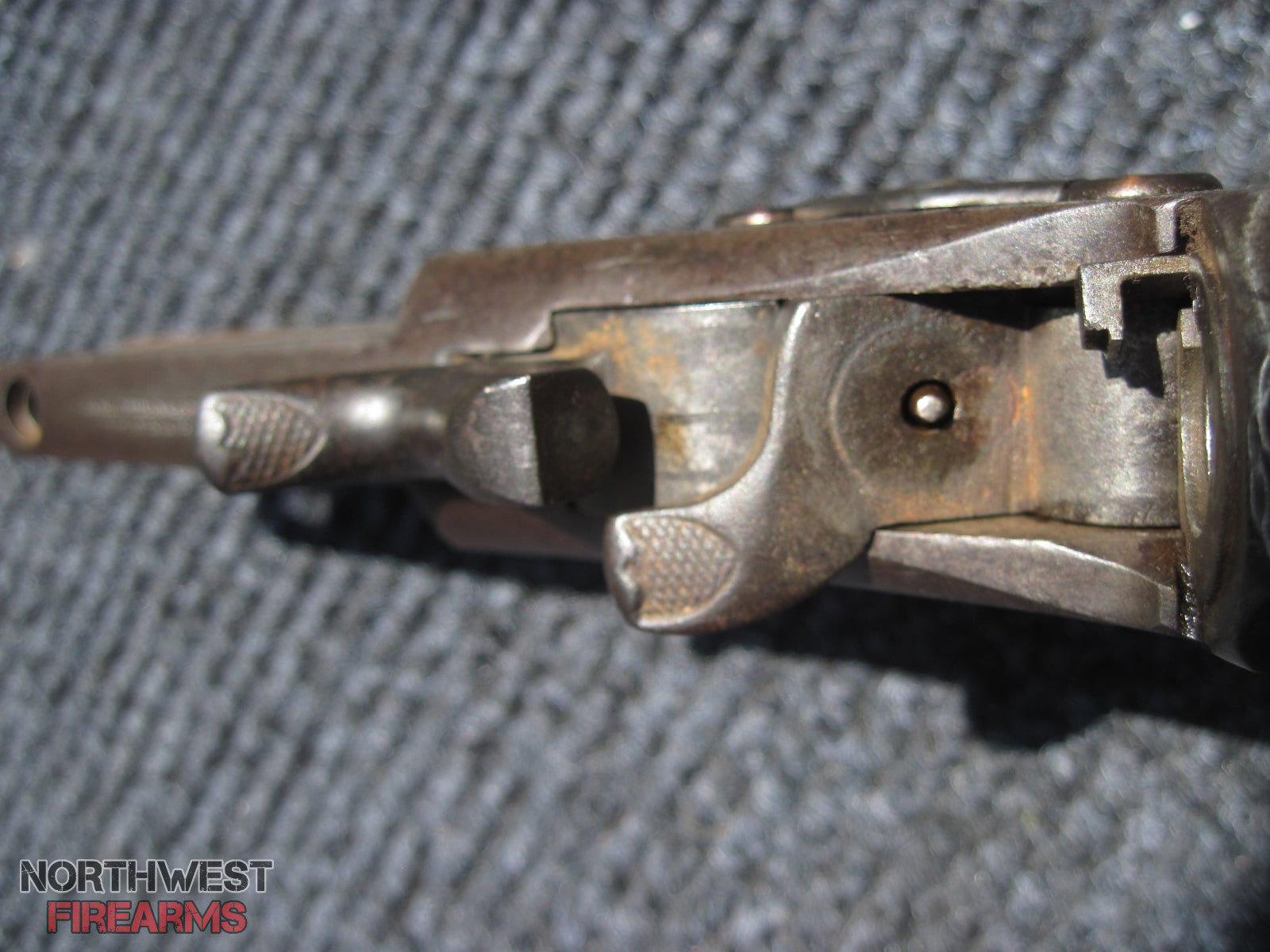

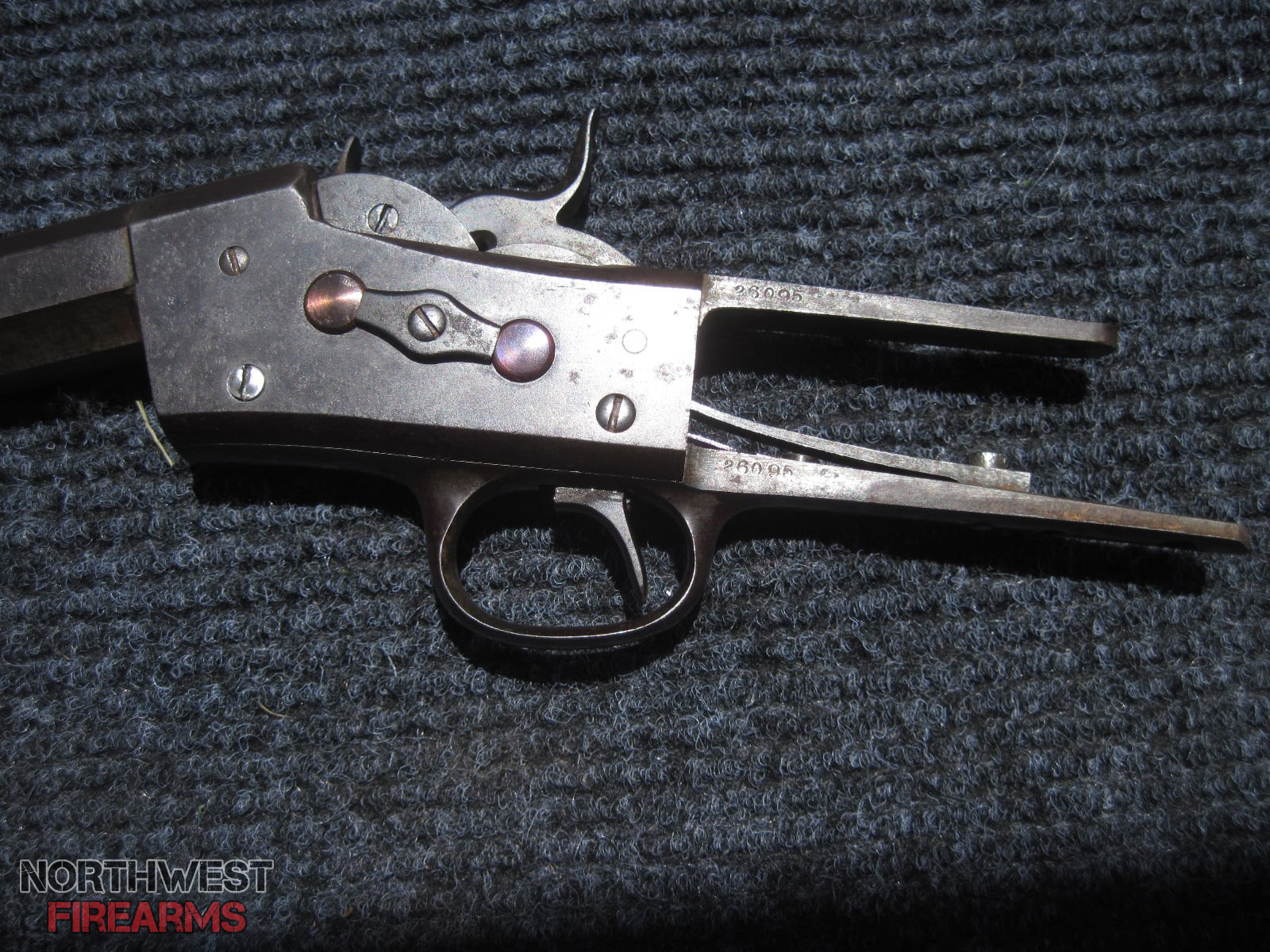

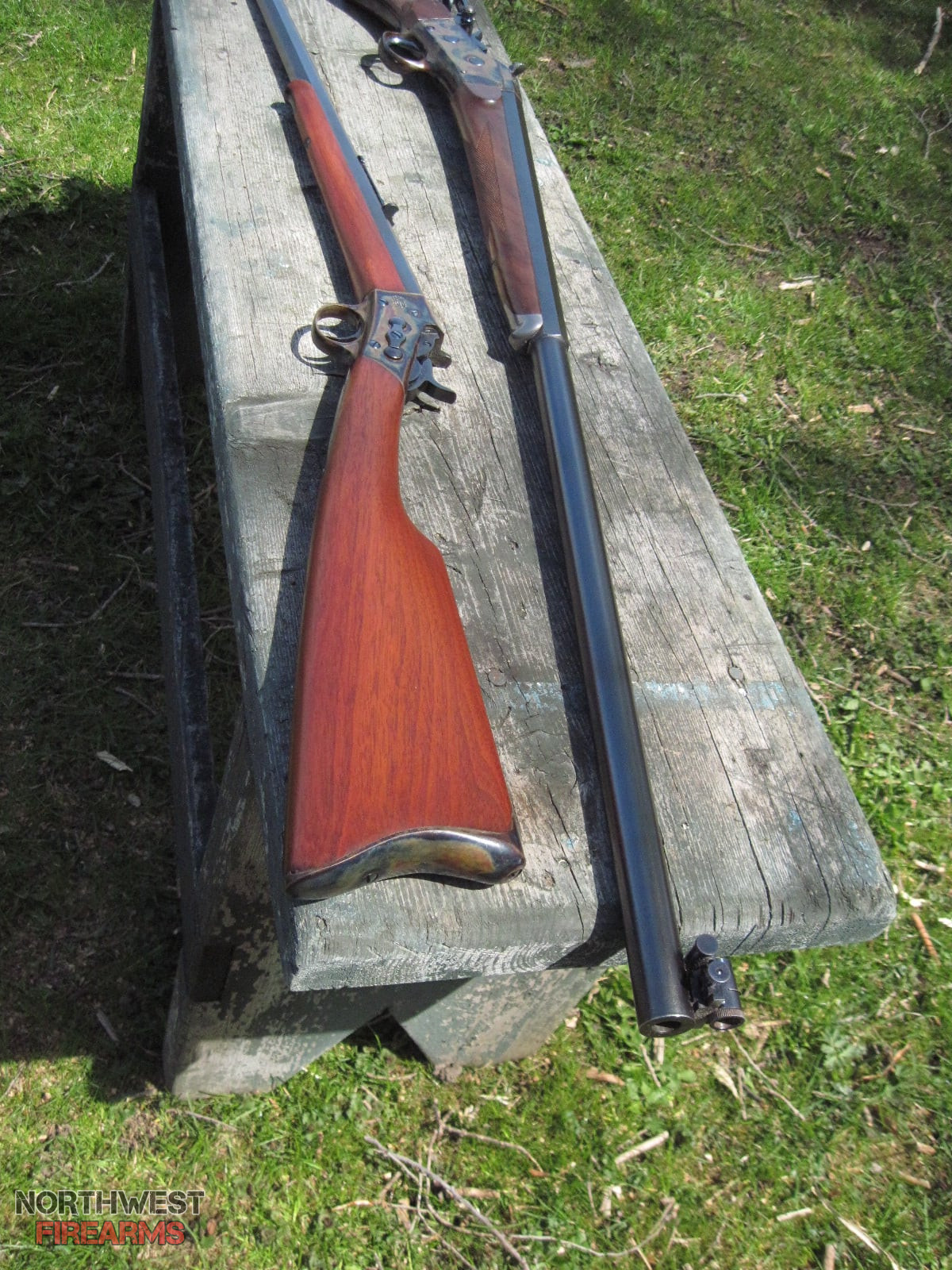

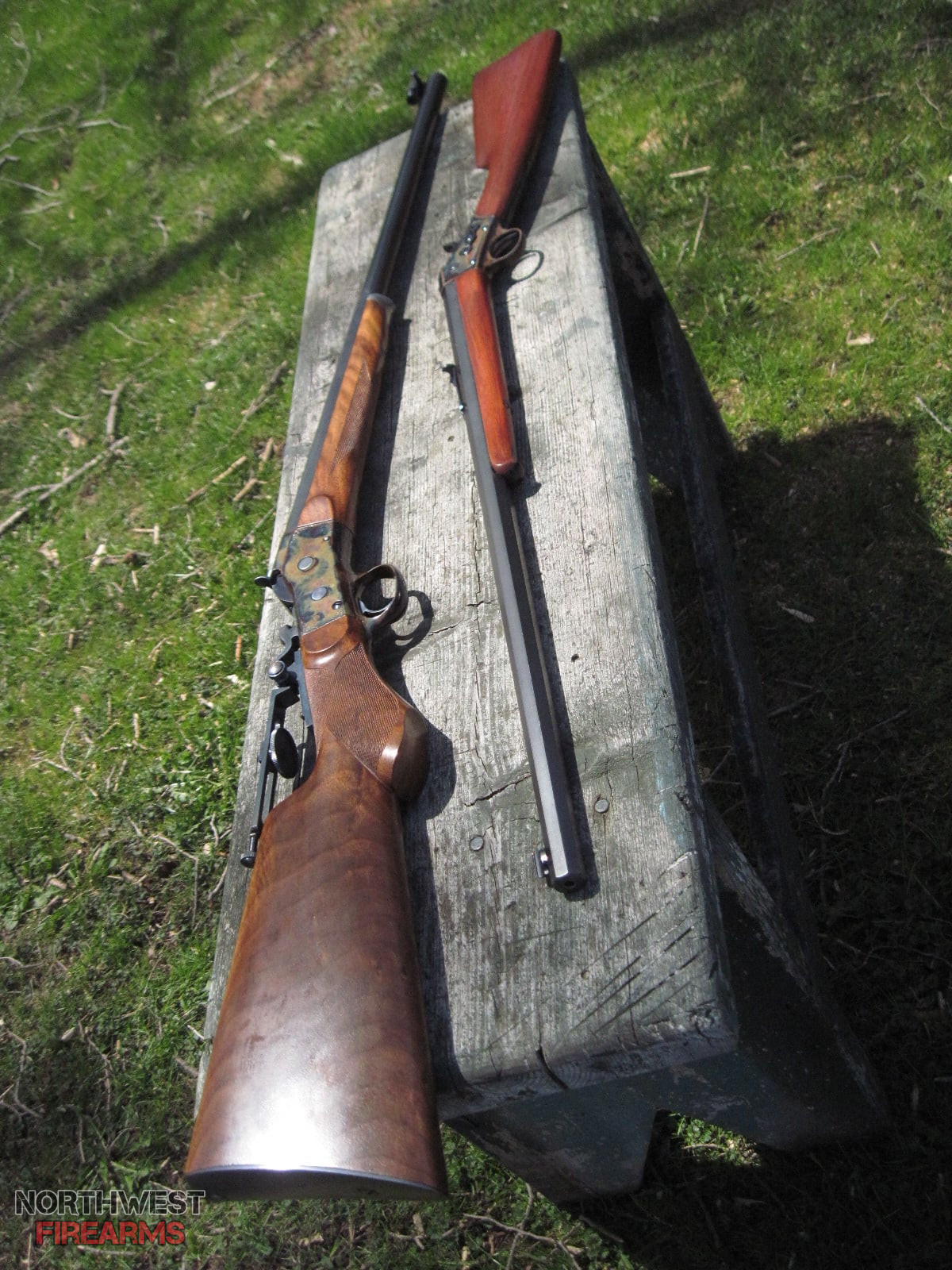

A few rollers I have left. #2 in .22 / 45-70 sporting / Sporting project single set trigger & a 24" bbl in .46rim converted to center



[ZigZagZeke]

A few rollers I have left. #2 in .22 / 45-70 sporting / Sporting project single set trigger & a 24" bbl in .46rim converted to center

View attachment 1105294 View attachment 1105295 View attachment 1105296 View attachment 1105297 View attachment 1105300 View attachment 1105301 View attachment 1105302

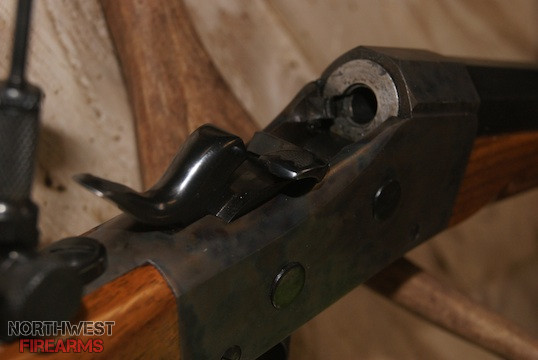

Your #1 bare action looks exactly like mine.



[oldglassmaker]

ZigZagZeke . That is a beautiful Roller !



[Moeca]

Here's mine. One needs work one needs a hope and well something! The pair are 7mm and came from a relatives estate. Unfinished/incomplete was fished out of several different boxes of "junk" parts. Been able to get it this far.
The saddle ring one a friend of the family gave to my boys for helping him with yard work. He remembers buying it in the 50s. I believe it is 43 spanish or Reformado but not for sure. We have one round for it here somewhere!



[Moeca]

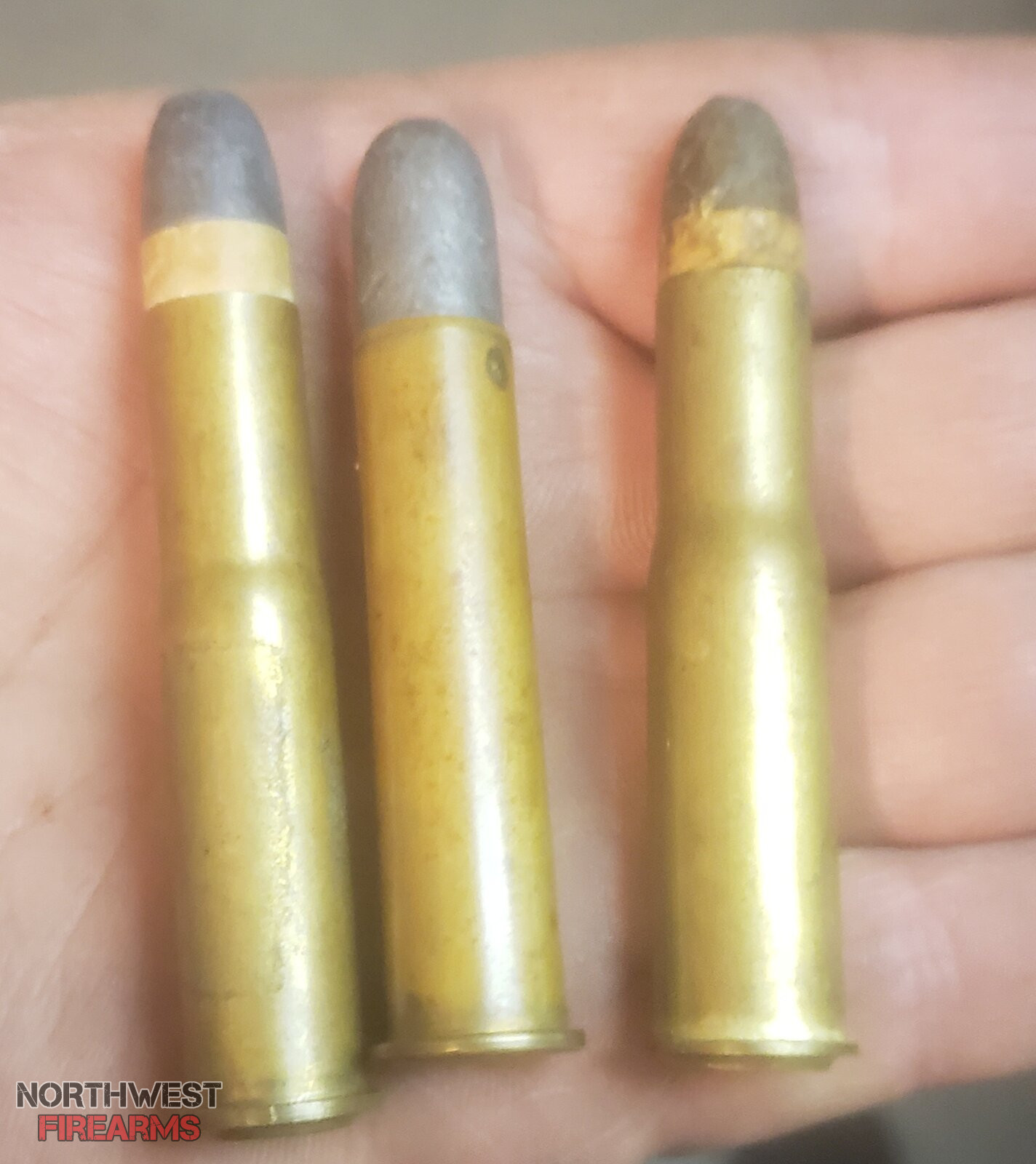

Had to go find it. Left to right 11mm mauser, 45/70 and 43 for the rolling block



[bcp]

Looking forward to posts on here, cool design. Anybody know if there are any .38/.357 rolling blocks? They wouldnt be that old obviously.

Uberti (and Navy Arms?) makes/made a small frame rolling block 357. I used to see them at gun shows, both rifle and pistol versions.

1871 BABY ROLLING BLOCK RIFLE & CARBINE | Uberti Replicas | Top quality firearms replicas from 1959

www.ubertireplicas.com

Bruce



[CLT65]

Had to go find it. Left to right 11mm mauser, 45/70 and 43 for the rolling blockView attachment 1106324

Is the .43 on the right shorter than the 11mm on the left? My first thought was .43 Spanish, until I noticed that it had a stepped rim/head like the 11mm Mauser.



[Moeca]

Yeah it is shorter by roughly 1/4 inch maybe less. I have done some measuring of the round but not alot of research yet.



[CLT65]

I dug out some similar rounds. Here's an 11mm Mauser, .43 Spanish, 11.15mm Austrian Werndl, .43 Reformado, and an 1888 45-70.

I think your 43 round has the wrong base and too long of a neck to be Spanish. Maybe the 11.15 Werndl? It has the right base, but is only slightly shorter than the Mauser. As far as I can tell, it wasn't used in the Remington rolling block. I'm not any kind of expert, just an amateur cartridge collector.
