.22 Blaster build

[Hardcore_rucke]

Any body on here build one of these or have experience with the complete build?

Canto Arms 22 Blaster Essentials-Plus Kit

This kit includes the essential hard-to-find parts needed to build your Han Solo style 22LR blaster plus the CMMG bolt group and barrel. MG81 Muzzle Device Receiver End Cap Receiver end plate Quick detach sling mount 22 Barrel nut Anti-jam charging handle Barrel crush washer CMMG 4.5″ 22LR...

cantoarms.com

Read More



[CountryGent]

I vaguely recall @Reno did. Tagging him in case my recollection is correct.



[Member 34319]

Nope, not yet. Always wanted to build a modern day Han Blaster.



[CountryGent]

Nope, not yet. Always wanted to build a modern day Han Blaster.

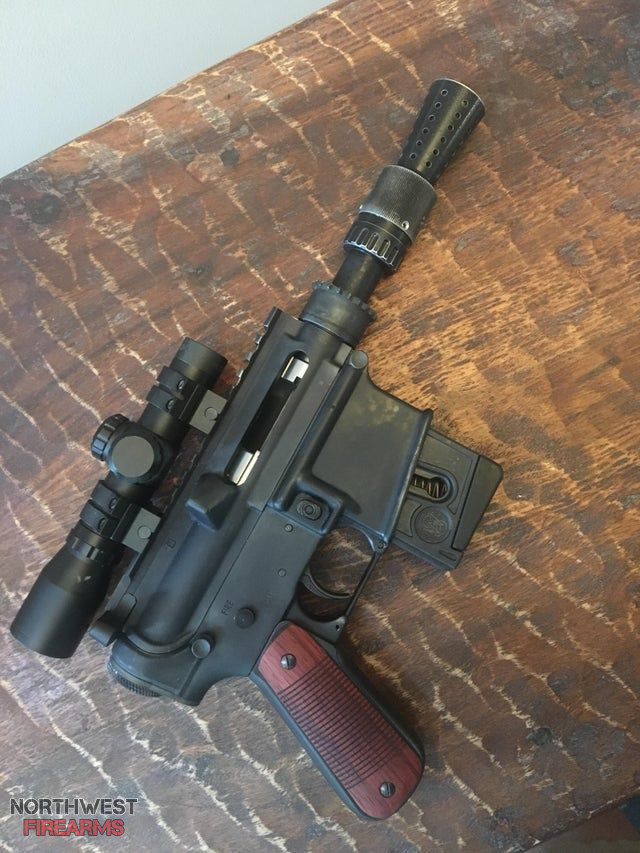

View attachment 903704

It would be super neat-o if one could be made in 9㎜ or .32 ACP.



[Member 34319]

It would be super neat-o if one could be made in 9㎜ or .32 ACP.

Need to ditch the buffer tube. I'm not sure a 9mm upper exists without a buffer system and or goofy forward charging handle. I've seen bolt style 300blk builds.



[CountryGent]

Good point on the buffer tube. (I vaguely recall those craptastic Olympic Arms handguns in 5.56㎜ that didn't have them. No idea if they ever made them in a handgun cartridge though.)



[Knobgoblin]

1 of these sells the concept just fine for LARPing star wars.
They fit almost everything, clamp with wingnut.



[Mygrainman]

Challenge accepted.
I just ordered the $60 flash hider, and I already have everything else in my parts stash. The only challenge is going to be making a suitable grip. I'm not about to pay $130 for the one they are selling… I'll build my own out of bubblegum and popsicle sticks if I have to.. I'll have to come up with something for "cooling fins" on the magwell. that's a very important detail IMO that they overlooked… I have a few ideas for the optic/mount too.
this should be fun!



[arakboss]

If they make this in 458 socom sign me up.



[Member 34319]

Challenge accepted.
I just ordered the $60 flash hider, and I already have everything else in my parts stash. The only challenge is going to be making a suitable grip. I'm not about to pay $130 for the one they are selling… I'll build my own out of bubblegum and popsicle sticks if I have to.. I'll have to come up with something for "cooling fins" on the magwell. that's a very important detail IMO that they overlooked… I have a few ideas for the optic/mount too.
this should be fun!

Look forward to seeing the results!



[Mygrainman]

Look forward to seeing the results!

I grabbed a poly lower for $50 yesterday that I thought had the right aesthetic… I absolutely would not use a poly lower for anything other than something like this.. there is no buffer to stress the weak point at the rear takedown pins… that said, I still don't like it. the roll pins pushed in way too easy, so I'd imagine they would work their way out over time just as easily, and it seems like the poly doesn't let the pins and detents move freely, but I think for this build it'll be perfect..

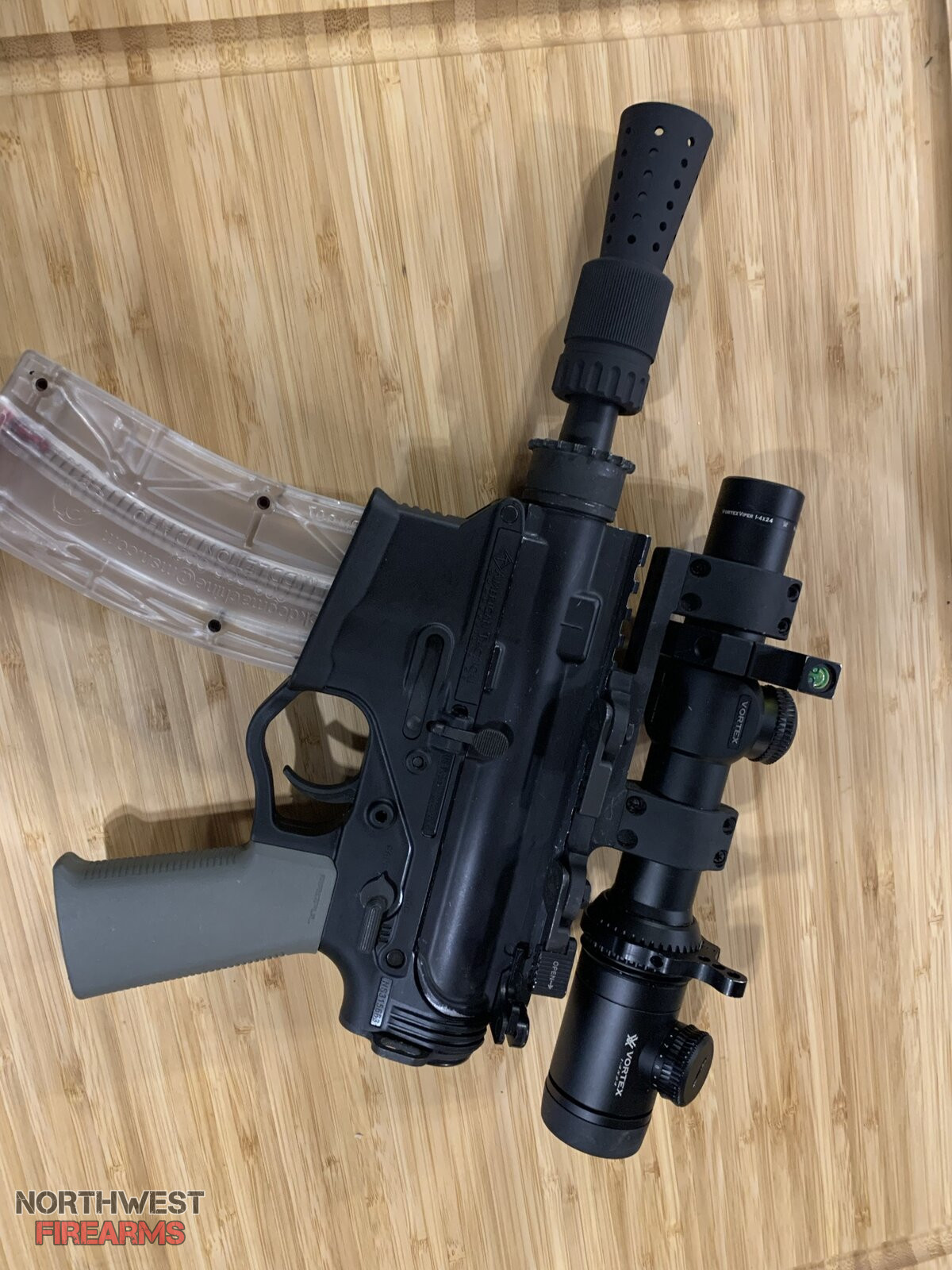

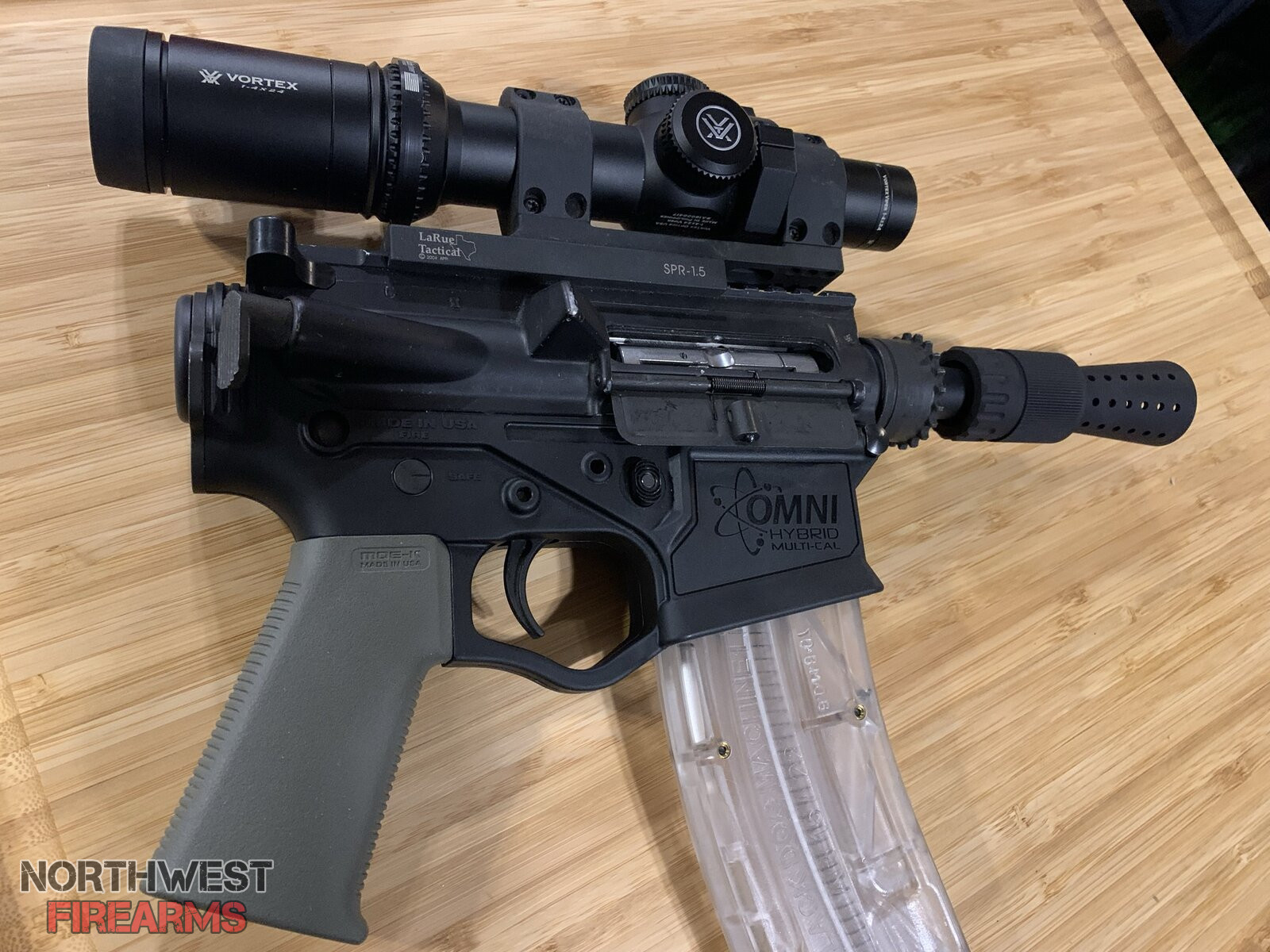

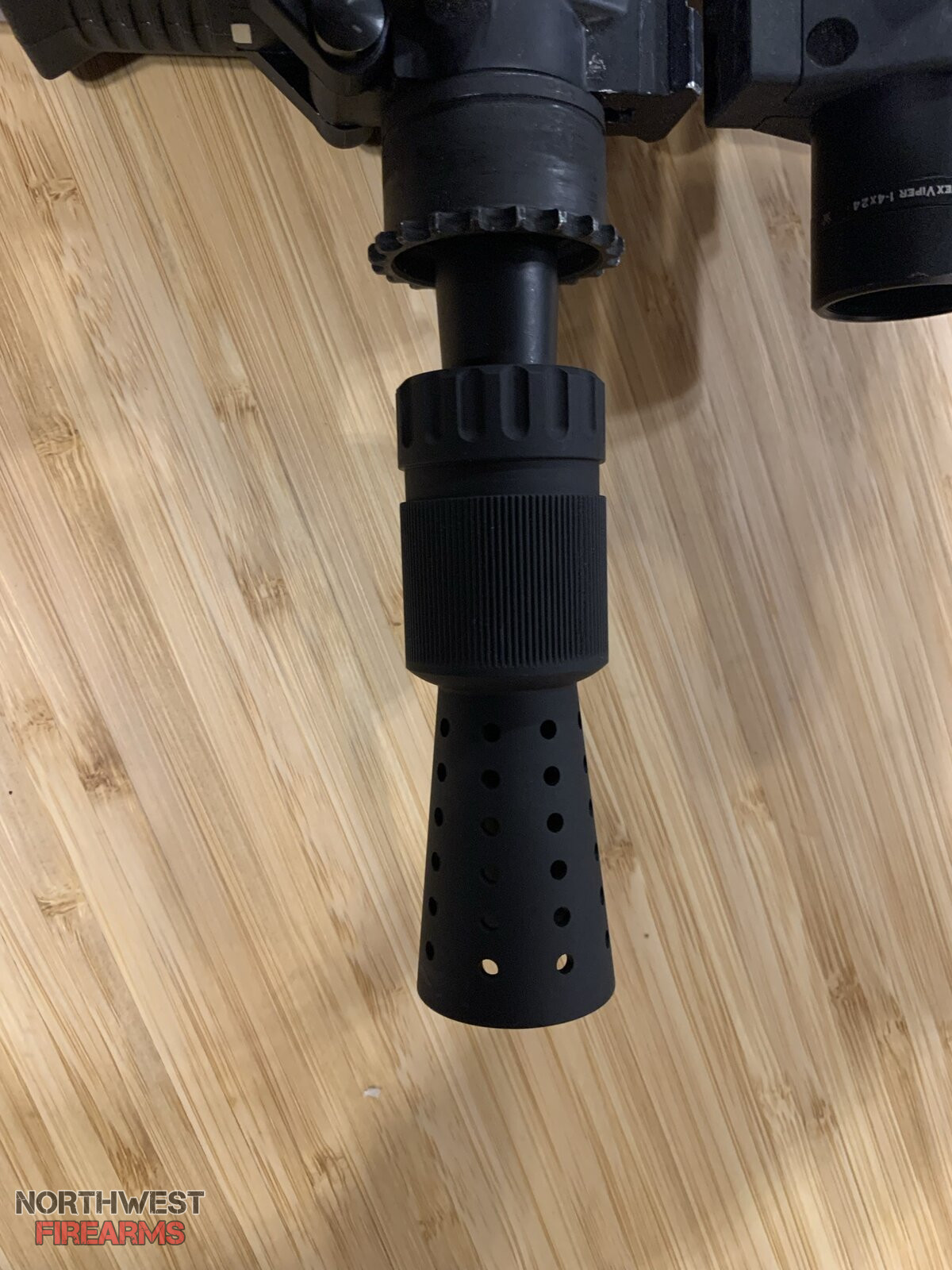

I got the muzzle device today so I through together what I could dig out of the toy box real quick… lots of stuff to work out for sure… the big stuff like the muzzle device and buffer tube delete get it into the ballpark… but it's the little details like the short 20rd. mag, broom handle grip, old school offset 4x scope, and cooling fins, and probably a little bit of paint that will take it home. I got this

The upper receiver, grip, and scope are just place holders for now.. I gotta pick up some parts here and there to get this right



[Member 34319]

Too cool! I had a bunch of those Omnis way back in like 2012 or so. Broke one on a regular build. Sold the rest that I bought. I would hope they are better now than back then. 15-22s are all plastic and they seem to be just fine, so I imagine a 22lr would be fine.



[Capn Jack]

If they make this in 458 socom sign me up.

HAHAHA....I would have loved to had an M1-Carbine in .458S, but for some reason Tony only made two of them.



[ACO]

I had to do one this summer. Went all out because I knew that I'd be Unhappy otherwise. Been talking to the owner at Canto Arms, and he is working on heat sinks, but not quite the kind you see in A New Hope. I've been debating on getting an aluminum set of heat sinks off ebay and trying to make them work I went with a dedicated 22lr bolt hold open bolt release lever, and a B.A.D. lever helps with manipulating the controls. It's pretty fun. I wish someone made a flush fit 22lr mag.



[arakboss]

I grabbed a poly lower for $50 yesterday that I thought had the right aesthetic… I absolutely would not use a poly lower for anything other than something like this.. there is no buffer to stress the weak point at the rear takedown pins… that said, I still don't like it. the roll pins pushed in way too easy, so I'd imagine they would work their way out over time just as easily, and it seems like the poly doesn't let the pins and detents move freely, but I think for this build it'll be perfect..
I got the muzzle device today so I through together what I could dig out of the toy box real quick… lots of stuff to work out for sure… the big stuff like the muzzle device and buffer tube delete get it into the ballpark… but it's the little details like the short 20rd. mag, broom handle grip, old school offset 4x scope, and cooling fins, and probably a little bit of paint that will take it home. I got this

The upper receiver, grip, and scope are just place holders for now.. I gotta pick up some parts here and there to get this right
View attachment 1017949View attachment 1017948View attachment 1017950

Can you post a picture of the BCG and whatever is behind the BCG (springs, bumper, etc)



[ACO]

Can you post a picture of the BCG and whatever is behind the BCG (springs, bumper, etc)

I'm using a dedicated 22lr bolt and barrel, so nothing behind the bolt. Just the buffertube delete cap thing.



[Alexr4920]

Nope, not yet. Always wanted to build a modern day Han Blaster.

View attachment 903704

Wow Pal That's Pretty Good.



[arakboss]

I grabbed a poly lower for $50 yesterday that I thought had the right aesthetic… I absolutely would not use a poly lower for anything other than something like this.. there is no buffer to stress the weak point at the rear takedown pins… that said, I still don't like it. the roll pins pushed in way too easy, so I'd imagine they would work their way out over time just as easily, and it seems like the poly doesn't let the pins and detents move freely, but I think for this build it'll be perfect..
I got the muzzle device today so I through together what I could dig out of the toy box real quick… lots of stuff to work out for sure… the big stuff like the muzzle device and buffer tube delete get it into the ballpark… but it's the little details like the short 20rd. mag, broom handle grip, old school offset 4x scope, and cooling fins, and probably a little bit of paint that will take it home. I got this

The upper receiver, grip, and scope are just place holders for now.. I gotta pick up some parts here and there to get this right
View attachment 1017949View attachment 1017948View attachment 1017950

Any ideas on how you could delete the rear charging handle when using a CMMG 22lr conversion kit? Maybe rig up some type of side charging handle to the bolt assy?



[Hueco]

Any ideas on how you could delete the rear charging handle when using a CMMG 22lr conversion kit? Maybe rig up some type of side charging handle to the bolt assy?

Do you think the .22 conversion bolt would pair nicely with a side charging AR9 upper? Seem to be plenty of them on the market.



[arakboss]

Do you think the .22 conversion bolt would pair nicely with a side charging AR9 upper? Seem to be plenty of them on the market.

Good question. I don't have one to try but it might work.
